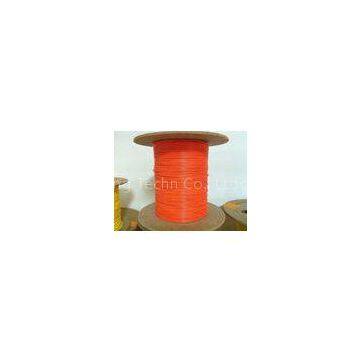

Orange Bulk Fiber Optic Cable Cords with 80N Tensile Strength

Brand Name	SunyKing		Place of Origin	China

Delivery Time:2-3days
Certification:IS09001-2008
Orange Bulk Fiber Optic Cable Cords with 80N Tensile Strength

Quick Detail:

Fiber?bulk?MM?DX?62.5?3.0mm Outer Diameter(mm): 2.0,3.0 Short-term Max.tensile strengh(N): 2.0mm-100N,3.0mm-150N Long-term Max.tensile strengh(N): 2.0mm-60N,3.0mm-80N Max.Crush Resistance(N/100mm2): 500 Temperature Range: -20 to 70°C

Specifications:

Item	Vaule
Outer?Diameter(mm)	2.0,3.0
Short-term?Max.tensile?strengh(N)	2.0mm-100N,3.0mm-150N
Long-term?Max.tensile?strengh(N)	2.0mm-60N,3.0mm-80N
Max.Crush?Resistance(N/100mm2)	500
Temperature?Range	-20?to?70°C

Description???????????????????????????????????????????????????????????????????

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Features

1, Good?mechanical?and?environmental?performance;

2, Flame-retardant?properties?to?meet?the?requirements?of?the?relevant?standards;

3,?The?mechanical?characteristics?meet?the?requirements?of?the?relevant?standards;

4, Soft,flexible,easy?to?splice,and?with?big?capacity?date?transmission;

5, Meet?various?requirements?of?market?and?clients.

Applications:

As?building?to?building?connecting?cable

As?indoor?soft?cable?along?the?wall,ceiling,between?layers?and?in?conduits

As?pigtails,movable?connectors?and?patch?cords?for?communication?equipment
