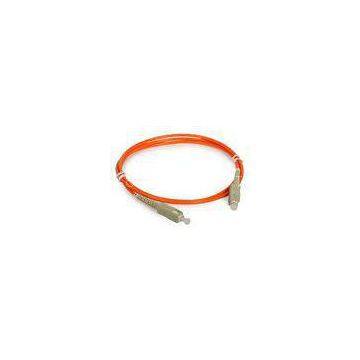

SC UPC Orange Aqua Fiber Optic Patch Cord Test , LAN Patch Cord
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
LC Simplex / Duplex Fiber Optic Patch Cord with Low Insertion Loss
-
OM3 / OM4 UPC LSZH Fiber Optic Patch Cord with Red Black Boot
-
LSZH Jacket Duplex SC Fiber Optic Patch Cord for Optical access network
-
ST SM Simplex Fiber Patch Cord Telecom Class and Polishing A
-
ST / UPC - ST Indoor Armoured Fiber Optic Patch Cord with Blue , LSZH jacket
-
FC Fiber Patch Cord with Yellow Cable , SM , MM Fiber Optic
Product Details
| Brand Name | TTI | Place of Origin | China | |
Product Description
Certification:ROHS, SGS
SC UPC Orange Aqua Fiber Optic Patch Cord Test , LAN Patch Cord
Quick Details:
Type: SC, UPC fiber patch cord Mode: 50/125, 62.5/125, OM3, OM4 Ferrule End-face: PC, UPC Cable core: Simplex, Duplex Cable diameter: 0.9mm, 2.0mm, 3.0mm Cable color: Orange, Aqua, VolientFeatures:
SC has a molded plastic plug casing and a push/pull locking system. Low insertion loss and high return loss Serialized & Individual Test Records 3D fiber interferometer is available Meets RoHS and Bell core GR 326-core standards Custom Configurations Available at No Extra Charge Pluggable structure, easy to intensive-installationApplications:
Optical access network Data processing networks Telecommunication networks Fiber optic communication networks CATV, LAN, WAN, Test &MeasurementSpecification:
| Parameter | Single Mode | Multi Mode | ||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO, E2000 | ||
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A |
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |
| Apex offset | ≤50um | |||
| Mechanical | Exchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.1dB | |||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||
| Repeatability | ≤ 0.1dB(1000 times) | |||
| Durability | > 1000 times | |||
| Operating Temperature | -40°C ~ +85°C |
Packing:
One piece per PE bag with stick label (we could add customer\'s logo in the label.)
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)Contact Us
