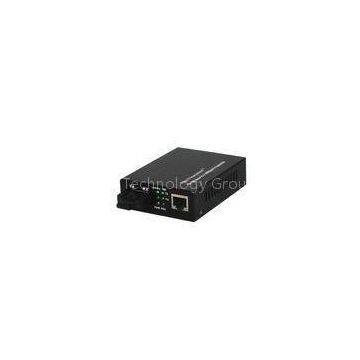

Gigabit Fiber Optic Media Converter With 9k Byte Super Data Packet

Brand Name	Fiberroad		Place of Origin	China
Model Number	FR-1501XX

Delivery Time:1 Weeks
Certification:CE

Gigabit? Fiber Optic Media Converter With 9k Byte Super Data Packet?transmission By store and forwarder mode

Quick Details

? Multi-mode 850nm / 1310nm 10 / 100M Fiber Optic Media Converter 1-Fx to 1 RJ45 Auto-adaptation 10Mbps and 100Mbps, convenient for network updating. With low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of broadcast storm. With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensurereliable data transmission and long working life ﹡ Speed 10/100M. Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism. Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation. Single RJ-45 electrical port NIC/HUB, auto cross-identification, link to computer network cards or switches or HUB. Supporting the switches to choose between 10/100Mbps store-and forward and straight-through transmission pattern(distinct). Supporting 1600byte super data packet transmission. dynamic data transmission and full/halfduplex, data rate. With more than 50, 000 hours MTBF, complying with telecom operating standard. Ultra low power dissipation(< 2.5W, Input:AC140 ~ 260V), low heat, long-time stable work. Supporting choosing optical ports from dual fiber(MM), dual fiber(SM), single fiber(SM).

Technical Parameter?Description:

Technical Parameter:
Access Method:	10/100Mbps
Standard:	IEEE802.3 , IEEE802.3u, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1d
Wavelength:	850nm/1310nm/1550nm
Distance:	Dual Fiber MM : 2Km Dual Fiber SM : 10/20/30/50/80Km Single Fiber SM : 20/40/60Km CAT5 : 100m
Conversion Method:	Media Conversion, Store-and-Forward/straight through
MAC Address Table:	1 K
Buffer Size:	1Mbit
Flow Control:	Duplex : flow control ; Half duplex : back pressure
Time Delay:	Store-and-Forward : 9.6us , Straight-through : 0.9us
BER:	<1/1000000000
LED Indicator Lamps:	TP 100 , FX 100 , FX LINK/ACT, TP LINK/ACT, , FDX, POWER
Power Supply:	DC5V 1A (external power) , AC220 0.5A /DC-48( internal power )
Power Dissipation:	<2.5W
Operating Temperature:	0 ~ 50 ℃
Humidity:	5%~90%
Storage Temperature:	-40~ 70 ℃
Dimension:	25mm (H)* 70mm (W)* 93mm (D)

?Order information:

Model No.	Description
FR-1501S2	10/ 100M Multi-mode 1310nm 2km
FR-1501S20	10/ 100M Single-mode 1310nm 20km
FR-1501S40	10/ 100M Single-mode 1310nm 40KM
FR-1501SA20	10/ 100M Single-mode WDM 1310/1550nm 20km
FR-1501SB20	10/ 100M Single-mode WDM 1550/1310nm 20km
FR-1501SA40	10/ 100M Single-mode WDM 1310/1550nm 40km
FR-1501SB40	10/ 100M Single-mode WDM 1550/1310nm 40km
