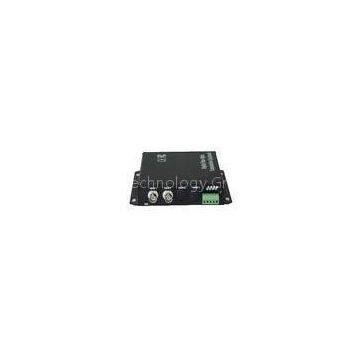

2ch Multifunction Video Optical Transmitter Full Duplex Mode RS232 RS422 RJ11

Brand Name	Fiberroad		Place of Origin	China

Delivery Time:1 Weeks

2ch Multifunction Video Optical Transmitter Full Duplex Mode RS232 RS422 RJ11

Application:

City traffic monitoring system. Police and safe city monitoring system. High way security protection and toll station system. Building and campus monitoring system. Industrial monitoring(airport, chemical plant, steel, oil, railway,
irrigation works, mine and so on). Military monitoring(storage, frontier defense, guard, national defense and so on). Electronic power oil field, TV station program broadcasting system. Gymnasium(live video and audio transmission).

Key Features:

Complete SMD components, 18 inches duralumin chassis, and standalone case. Support hot plug and play, switch power supply. Optical interface: FC, ST, SC (optional). Without EMI, RFI and ground loop. 8BIT and 10BIT quantification level is optional. Abundant signal interface, such as video, data, audio, telephone, Ethernet, ?
binary input/output and talkback. Perfect signal indicator for optical, video, data, audio, telephone, Ethernet,
binary input/output and power supply. Excellent data anti-thunder solution. 1310nm and 1550nm optional and max optical link loss is 30dB. Standalone and module two types. Standalone video multiplexer (1U chassis and standalone multiplexer),
additional chassis is unnecessary. Module type equipped with 18 slots chassis.

Product information:?
?
Opitcal:

Output/Input Wavelength	1310nm&1470nm~1610nm
utput Power	-8~3dBm
Optic fiber	50/125u multimode , 62.5/125u multimode , 9/125u single mode
Rx sensitivity	-30dBm
Optical interface	FC , ST , SC(optional)

Video:

Number of Channels	1
Input/output impedance	BNC 75Ω (unbalance)
Standard video input/output voltage	2.0Vp-p
Video voltage range	0.6~2.0Vp-p
Differential Gain	< ±1%
Differential Phase	< ±1
S/N ratio	>60dB(weighting)(8 bit) >70dB(weighting)(10 bit)
Connector	BNC

Audio :

Audio Input/output Impedance	600ohm(unbalance)
Max input/output voltage	2.0Vp-p
Frequency Response	10~20kHz
Total Harmonic Distortion	<0.05%
S/N ratio	>95dB(weighting)
Connector	Standard terminal lead

Data:

Data protocol	RS232 , RS422 , RS485 , Manchester , BIPHASE data
Data rate	0~300kbps
Error rate	10e-9
Connector	Standard terminal lead

Ethernet:

Work mode	Full duplex/half duplex
Network speed	10/100Mbps(AUTO)
connection terminal	RJ45

Telephone:

Connector	Standard RJ11
Phonetic bandwidth	8KHz
Work mode	Point to point hot line, program controlling switch/extension mode
Distortion	<1%
S/N ratio	>95dB
