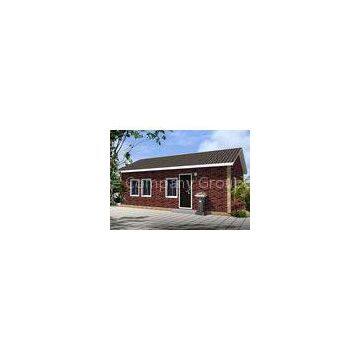

Easily Install Outdoor Prefabricated House Kit Prefab Bungalow For Bedroom , Study Room

Steel frame

- made from cold rolled, welded steel profiles, 4 mm thick

- 4 corner casts, welded

- 2 fork lift pockets (except 30’) - distance 1200mm
(internal clearance of fork lift pockets: 240×80 mm)

- steel cross members, thickness=2mm

Insulation

- 100 mm thick Rock Wool

Subfloor

- 0.5mm thick, galvanized steel sheet

Floor

- 18mm plywood board

-???????? 1.8mm PVC floor
-???????? flammability class B1 - hardly combustible
-???????? smoke density class Q1 - low smoke emission
-???????? wear resistance factor: T level

Steel frame

- made from cold rolled, welded steel profiles, 3mm thick

- 4 corner casts, welded

- steel cross members, thickness=2mm

Roof cover

- 0.5mm thick, galvanized steel sheet
- 360 degree seaming at joint of roof panels

Insulation

- 100 mm thick Rock Wool

Ceiling

- 10 mm chipboard (V 20), laminated on both sides, white
- the chipboard complies with the emission value E1

CEE connector

- sunken in frame on short end side

Rockwool

- density:120kg/m3

- flammability class A- non combustible
- smoke density class Q1 - low smoke emission

- certificated: CE & GL

NeoporR

- density:18kg/m3

- flammability class B1- non combustible
- smoke density class Q1 - low smoke emission

- certificated: CE & GL

DecoCoating

Special?coating?can?be?applied?on?top?of?sandwich?wall?panel and make the external wall surface looks like plastering finishes or timber finishes. That makes the container house cozy and less industry look.
