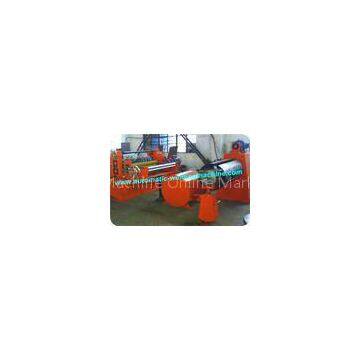

Cold Rolling Mill Machinery , Industrial Steel Plate Automatic Slitting line

1. Main technical data

2. Composed devices

Manual expand and shrink uncoiler (1 unit)

a. Structure: four connection rods adjust manually and mechanically and the motor drives the steel coils doing uncoiling.

b. Specification: Φ520max/480min×1250 (width of roller)

c. 7.5kw frequency conversion control to make sure the speed is adjustable and it is equipped with both passive and active uncoiling models.

d. The max capacity: 5T with simple supporting stand.

Storage pit 1

??????? It should be done according to the foundation drawings.

Φ220×1250mm disc slitting machine (1 Unit)

a. Specification of blades: Φ220×Φ120×10, material: 9CrSi and 10 pieces of blades and a set of spacers and rubber board will be provided with the machine for free (customers can extra purchasing of the blades as per the slitting numbers).

b. Thickness of processable material: δ＝1.0mm.

c. Width of processable material: B≤1250.

d. Electric motor: 11KW frequency conversion control motor to control the speed.

e. The slitting machine is designed with entry guide device.

f. Slitting speed: v＝30m/min.

Storage pit 2

??????? It should be done according to the foundation drawings.

First pre-dividing,and press device (1 unit)

a. It is equipped with guiding and dividing devices after slitting.

b. It also designed with the tension press which is match to the recoiler and ensure the even and tight quality of recoiler

Φ510(Maximum)×1350 mechanical recoiler (1 Unit)

a. Specification of shaft: mΦ510/470minx1350

b. Capacity: P≤5T with simple supporting stand

c. Motor: 22KW frequency conversion control motor

d. Speed: v＝30m/min (average)

Second dividing and pressing device (1 unit)

a. This device cooperate with the recoiler to make sure the
