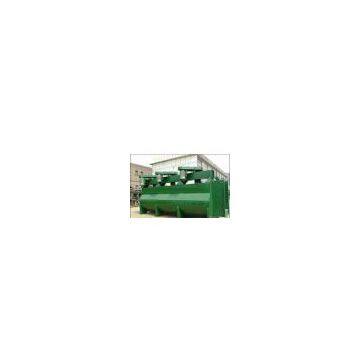

Flotation machine
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
A).Purpose of Flotation machine:
1.This float selecting machine is used for separating ferrous and
non-ferrous metals.
2.The flotator can also be used for separating non-metals like coal
fluorite and speckstone. The impeller is rotated by vee belt of electric motor
and produces centrifugal function resulting in negative pressure. One hand, it
sucks into enough air to mix with pulp and fine the foam in order that the
mineral can stick on the foam. Then it turns into mineral foam after floating on
the pulp. Adjust the height of stopper to control fluid level in order that the
available foam can be scrapped out by scrappers.
B).main technical parameter of flotation machine：
|
Type and specification |
Trough volume of the machine |
Dia. Of impeller |
Production capacity m2/msh |
Revolution of the impeller r/min |
Scraper revolution r/min |
|
XJK-0.13(1A) |
0.13 |
200 |
0.05-0.16 |
600 |
17.5 |
|
XJK-0.23(2A) |
0.23 |
250 |
0.12-0.28 |
500 |
17.5 |
|
XJK-0.35(3A) |
0.35 |
300 |
0.18-0.4 |
470 |
17.5 |
|
XJK-0.62(4A) |
0.62 |
350 |
0.3-0.9 |
400 |
16 |
|
XJK-1.1(5A) |
1.1 |
500 |
0.6-1.6 |
330 |
26 |
|
XJK-2.8(6A) |
2.8 |
600 |
1.5-3.5 |
280 |
26 |
|
Type and specification |
Impeller electromotor |
Scraper electromotor |
Appearance sizelength× |
Weight (t) |
||
|
Type |
Power |
Type |
Power |
|||
|
XJK-0.13(1A) |
Y90L-4 |
1.5 |
Y801-4 |
0.55 |
2110×865×990 |
0.35 |
|
XJK-0.23(2A) |
Y90L-4 |
1.5 |
Y801-4 |
0.55 |
2625×1130×1290 |
0.42 |
|
XJK-0.35(3A) |
Y132S-6 |
3 |
Y801-4 |
0.55 |
3012×1350×1327 |
0.45 |
|
XJK-0.62(4A) |
Y132M1-6 |
4 |
Y90L-6 |
1.1 |
3798×1464×1530 |
0.85 |
|
XJK-1.1(5A) |
Y132M2-6 |
5.5 |
Y90L-6 |
1.1 |
4679×1820×1942 |
1.24 |
|
XJK-2.8(6A) |
160L-6 |
11 |
Y90L-6 |
1.1 |
7750×1600×1100 |
2.43 |
