Dance hall RF Wife Led Controller / master rgb led strip wifi controller

Dance hall RF Wife Led Controller / master rgb led strip wifi controller

Quick Detail

Model Number: WF200

Brand Name: RayElite

Type: ed wifi controller

Task:Adjust

Structure:Combination

Signal:Discrete

Mathematical Model:Non-Linear

Working Voltage:DC5-24V

Output Current:4A*3

Remote Control Distance:About 50 Meters

Standby Time:6 Months

Export Markets:Global

Description:

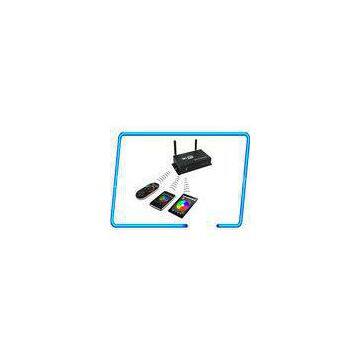

LED-WiFi controller is based on the traditional controller with infrared, RF technology, it is birth of market and customer\'s demand, it is one type controller which integrates the latest WiFi technology in the market. It makes the LED control more convenient, more humanized. We can use a mobile phone with Android system or IOS system to install control software, then it can control LED, this is also the aspirations of each customer.

Using WiFi technology can make our control range more wider, and get rid of narrow space constraint, inside building can control more than 50 meters, in outdoor can control more than 100 meters.

In the condition of not using the mobile software, we can also use the remote control to control, It is very convenient, brings many choices for you

Applications:

Disco and Club

Live performance

Stage show

Architectural

night bar,

KTV,

dance hall

home

Main features

You can use a mobile phone or RF controller to control LED lights. The mobile phone must have software including IOS operating system and Android operating system. Now the compatibility effect to Samsung and HTC is better, we recommend to use these two models.

Technical Parameters

Remote control technical parameters

Working temperature: -20-60

Power supply method: AAA*3

Supply voltage: 1.5V*3

Standby power: 0.015mW

Standby current: 3uA

Working current: 200uA

Emission current: 10mA

Remote control distance: About 50 meters

Standby time: 6 months

Software technical parameters

Name: Dream Color

Runtimeplatform: Android version supporting Android system(better one can support Samsung, HTC), IOS version supporting IOS system, equipment must have WiFi function

Byte: Android version(622K), IOS version(581K)

Language: English

Category: Communication

Free, green, noplug-ins

Controller technical parameters

Working voltage: DC5-24V

Output control: Can control 3 channels, 2 channels, 1 channel LED lamps flexibly.

Output current: 4A*3

Connect mode: Common anode

External dimension: L107*W65*H30(mm)

Receiving sensitivity: 802.11b DSSS(-5dBm), 802.11b CCK (-10dBm), 802.11g OFDM(-15dBm).
