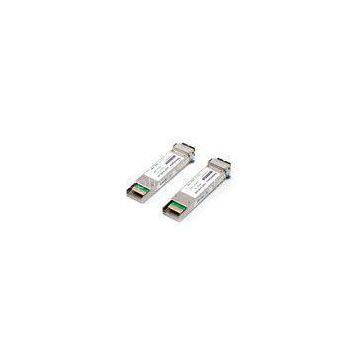

850nm 300m 10G XFP Module MMF For 10x FC Telcom xfp-10g-sr

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Supply Ability 0 Kilogram / Kilograms per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AscentOptics/Neuter, OEM		Place of Origin	China
Model Number	AOX-8192-SR

Product Description

Delivery Time:Within 1-3 working days after PO confirmed
Certification:CE/FCC/RoHS/TUV/UL

850nm 300m 10G XFP Module MMF For 10x FC Telcom xfp-10g-sr

Specification:

P/N	AOX-8192-SR
Datarate	10G/ps
Wavelenth	850nm
Distance	300M
Transmitter	VSCEL
Receiver	PIN
Media	MMF
DDM/DOM	YES
Connector	LC
Application	Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V
Certification	CE/FCC/RoHS/TUV/UL
Brand	AscentOptics/Neuter, OEM

10G XFP SR 850nm 300m Multi-mode Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64
?

Description:

XFP modules are?hot-swappable?and?protocol-independent. They typically operate at?near-infrared?wavelengths?(colors) of 850?nm, 1310?nm or 1550?nm. Principal applications include?10 Gigabit Ethernet, 10 Gbit/s?Fibre Channel,?synchronous optical networking?(SONET) at OC-192 rates, synchronous optical networking STM-64, 10 Gbit/s?Optical Transport Network?(OTN) OTU-2, and parallel optics links. They can operate over a single wavelength or use dense?wavelength-division multiplexing?techniques. They include digital diagnostics that provide management that were added to the SFF-8472 standard. ?XFP modules use an LC?fiber connector?type to achieve high density.

The AscentOptics 10G XFP Module offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Features

10Gb/s serial optical interface compliant to 802.3ae 850nm VCSEL? transmitter and Pin photodiode receiver XFP Mechanical interface with bail latch and hot pluggable XFI High Speed Electrical Interface 2-wire interface for management and digital diagnostic monitor Low Power Consumption <1.25W, Single +3.3V Power supply Oerating case temperature: 0 to?70 °C ll-metal housing for superior EMI performance Advanced firmware allow customer system encryption information to be stored in transceiver RoHS complian No reference clock needed

Applications

10GE Ethernet switches and routers 10GE Storage SONET(OC-192)/SDH(STM64) line card
?

AscentOptics 10G XFP

P/N	Data Rate	Distance	Wavelength	Media	Connector
AOX-8192-SR	10G/ps	300M	850nm	MM	LC
AOX-3192-LR	10G/ps	10KM	1310nm	SM	LC
AOX-3192-LRM	10G/ps	220M	1310nm	MM	LC
AOX-5192-ER	10G/ps	40KM	1550nm	SM	LC
AOX-5192-ZR	10G/ps	80KM	1550nm	SM	LC
AOX-CXXXX-R40	10G/ps	40KM	CWDM XXXXnm	SM	LC
AOX-CXXXX-R80	10G/ps	80KM	CWDM XXXXnm	SM	LC
AOX-DXX-R40	10G/ps	40KM	DWDM CHXX	SM
