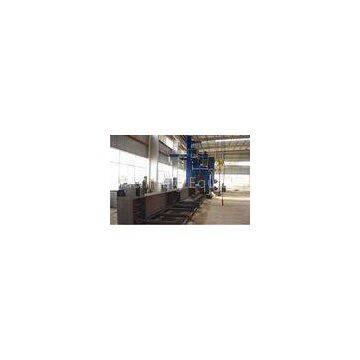

Automatic Heavy-duty SPQ Series Blast Cleaning Roller Machine of H Beam Welding Line
USD $10 - $10
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customized CNC System Cutting Machine with Dual Drive
-
High Precision CNC Cutting Machine System of Custom Made
-
Numerical Control CNC System Straight Plasma Cutting machine
-
Portable CNC Flame Cutting System Of High Precision Plasma Cutting Machine
-
High Precision Flame Portable CNC Cutting System Machine Of National Standard
-
SH2000 High Precision Portable Assembly CNC Cutting Machine System
Product Details
Brand Name | Yijie | Place of Origin | China | |
Model Number | SPQ |
Product Description
Certification:CE
Automatic Heavy-duty SPQ Series Blast Cleaning Roller Machine of H Beam Welding Line
1. Structure
SPQ blast cleaning machine is the use of high-speed rotating impeller of projectiles thrown drum continuously overturned on the workpiece, thus achieving the purpose of liquidation workpiece. It applies to all sectors of the money Sand Castings and Forgings, removing rust and oxidation to the skin and surface hardening. Since this machine with a unique dust collection devices, the installation locations workshop ventilation pipe from the restrictions, and the health conditions are good, the machine\'s automatic shutdown device is simple to operate. The main functions of aircraft parts cleaning up room, an indoor roller transportation and access of conveying roller, Shot blast for projectile circulatory system (including Hoist, separators, and vertical and horizontal screw conveyor and the projectile recovery for the pill and pipelines) Purge bodies, dust, electrical components and control components.
2. Principle
This machine is the roller machine for Continuous Feeding of high function blast cleaning equipment, in the liquidation process, when the Speed Roller Conveyor pieces of steel or steel cleaning machine which is electrical controlled is send into intimate projectile District, its whole body from the surface will receive combat and friction by different coordinates of the powerful? intensive projectile to make its skin oxidation, rust and dirt layer rapidly falling out of steel , thus the surface of the steel will be roughness finished and handling workpiece on both the import and export clearance outdoor roller. The above projectile which is felled into the steel purge by the dust and rust devices, the tourist from the pill dust mixture from the spiral transported to the recovery room on the funnel, and vertical and horizontal screw conveyor to the pool in the lower part of Hoist, again rose to the top of the machine for the separation, the separation of pure projectile fall into separator hopper for Blasting recycling. Blasting cleaning dust from the exhaust pipe to send deducting system, purification treatment, the net emissions to the atmosphere, the dust particles were captured collected.
Product Application:
Automatic mode heavy duty H-beam build up line is widely used in various metal structure enterprises domestically.
Product Advantage:
high quality
Reasonable price
good service
Specification:
Equipment Model
|
?SPQ0816
|
Through workpiece size
|
Section 800 x 1600mm
|
length workpiece
|
3500-4000mm
|
Blasting
|
Blasting volume number 8 × 8 × 8 200Kg/min kw power
|
nput and output Roll
|
?1000 to allow truck / m speed transmission 0.4-4m/min
|
Dust air volume
|
15300m3 / h
|
Pill material recycling volume
|
96T / h
|
Size
|
26, 400 × 4105 × 6030mm
|
Pit to the depth
|
?2090mm
|
Total power
|
?137KW
|
