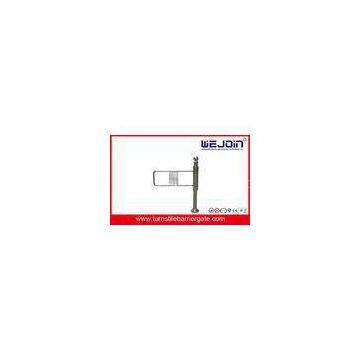

Electric Car Park Barriers Pedestrian Swing Barrier Gate With Traffic Light , AC 110V / 220V
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
DC 12Volt 7Ah Parking Lot Equipment For Security Shop And Shopping Mall
-
Automatic Car Park Lock Parking Lot Equipment IP68 Waterproof
-
Stainless Steel Double Automatic Swing Barrier Gate With Dry Contact Interface
-
Portable Turnstil Single Swing Barrier Gate for Pedestrian
-
IP32 High Speed Swing Barrier Gate System With Double Direction
-
Adjustable Direction Automatic Swing Barrier Gate For Business Buliding
Product Details
| Brand Name | WEJOIN | Place of Origin | China | |
| Model Number | WITB101 |
Product Description
Certification:CE,ISO
Electric Car Park Barriers Pedestrian Swing Barrier Gate with Traffic Light , AC 110V / 220V
Quick Detail:
Name: Swing Barrier gate Voltage: 110V/220V Application: Park,shopping mall and playground Feature: Adjustable access directions Motor type: DC24V,brush Material: Stainless steel Certificate: CE,ISODescription:
1.WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation and?self-lock mechanism can also well protect the access control security.
2.WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.anti-reversing passing function
3.WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, bus station ,token system etc.
4.WEJOIN swing barriers have auto delay closing function, Alarm for unauthorized access and no access against passenger flow.
5.WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can ensure the entrance security.
6.WEJOIN swing barriers input interface available for dry contact and switch signal connection
Specifications
|
Model Item |
Swing Barrier Mechanism |
| Mechanism Dimension | 108*450mm |
| Arm Length(Optional) | 500-900mm |
| ?Swing Direction | Single or Bidirectional Operation are Available |
| Voltage | 220V+-15% or 110V+-15% |
| Driving Motor | 24V Brush DC Motor |
| Input Interface | Dry Contact and Switch Signal Connection |
| ?Motro Material | Steel and Aluminum Alloy |
| ?Working Temperature | ? —25°C~50°C |
| Time for Opening or Closing | 1 s |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Starting time after power on | 3 s |
| Relative Humidity | ≤90%, with no condensation |
