Three Groups of Oxygen Double-side Gas Cylinder Manifold For Cutting Machine
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
One Side Oxygen Gas Cylinder Manifold With Red Copper Pipes / T-shaped Wrench
-
Automatic Fuel Gas Single Side Gas Cylinder Manifold For CNC Flame Cutting Machine
-
Automatic M12 Brass Fuel Gas Cutting Torch Flashback Arrestor M12 * 1.25
-
Bundle Connector Pipeline Accessories , Brass Fitting For Flame Cutting Machine
-
Cutting Machine Gas Pipeline Accessories M12 , M16 , G1/4 Brass Nut
-
Short Pipe Tee Joint Copper Screw Pipeline Accessories For Brass Fitting
Product Details
| Brand Name | Longteng | Place of Origin | China | |
| Model Number | LT-HL-03 |
Product Description
Certification:CE,ISO

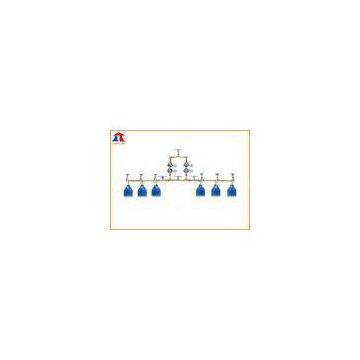

Three Groups of Oxygen Double-side Gas Cylinder Manifold For Cutting Machine
1) Quick Detail:
1. Oxygen gas cylinder manifold
2. Let the high pressure gas centralized management
3. Material:brass
2) Description:
1> Gas Cylinder Manifold Meaning
1. Gas cylinder manifold is main parts in centralized gas supply equipment. It is used for changing high pressure gas into low pressure gas so that to be used.?
2. When two sets of bus used together, another set can be discharged to exchange gas cylinder, two units work on duty.
3. Double-side cylinder manifold adopts dual gas supply structure with a main supply cylinder group and a backup cylinder group.
2> Standard Configuration
1. High pressure hoses are metal hoses, or oxygen cylinder manifold uses red copper pipes, the acetylene cylinder manifold uses chrome plated metal stainless steel pipes.
2. Flashback arrestor at the outlet of the acetylene and propane cylinder manifold.
3. For use of acetylene and propane cylinder manifold, the connecting cylinder rack, T-shaped wrench and adaptor are fitted at the outlet end of the acetylene and propane cylinders.
4. Adopting pressure reducer with large flow.
3) Applications:
When the pressure of the main supply cylinder group becomes too low to supply gas, turn off the valve of the main supply cylinder group, and at the same time turn on the valve of the backup cylinder group to start gas supply.
This type of cylinder manifold manually realizes the shift between the main gas supply and the backup one, which can avoid the stop of gas supply.
4) Specifications:
|
Model?Number |
LT-HL-03 |
|
Brand?Name |
Longteng,OEM |
|
Place?of?Origin |
Wuxi,?China?(Mainland) |
|
Certification |
CE,ISO |
|
Loading?Port |
FOB?Shanghai |
|
Wearing?Capacity? |
0.2 |
|
Impact?Strength |
50(Mpa) |
|
Pipeline?Thickness |
2(mm) |
|
Friction Coefficient ?? |
0.1 |
|
Fluid?available |
various?gases |
|
Material |
Brass |
|
Pipe?Diameters |
25mm |
|
Using Temperature Range |
75(℃) |
5) Competitive Advantage:
1> Product Advantage:
1. Open structure design
2. Piping system adopted the sliver brazing,which can prevent leakage effectively.
3. Blind plug at the pipe end for possible extensive
4. System is equipped with gas filter device,which can filter the dust in the gas effectively.
5. Reserved the pressure switch interface
6. The whole system passed pressure test, safe and reliable.
7. Either wall or horizontal installation
