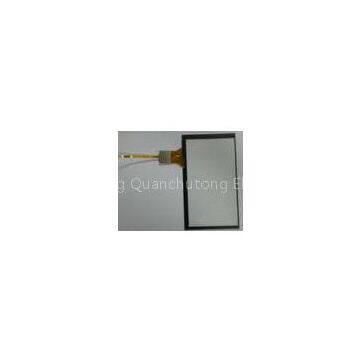

PCAP / PCT 7 Inch capacitive 5 point touch screen with I2C connector and Controller

Customized 7 Inch Mobile Screen Projected Capacitive 5 Point Capacitive Touch Screen

Quick Detail:

1.Size: 7 Inch 16 : 9 ratio

2.Resolution: 1024*1024

3.Input method: Finger

4.Material: Glass + glass

5.Touch action force: 30~60g

6.Operating Voltage: 3.3V

Projected Capacitive Touch Screen Technology

5 point projected capacitive touch screen are especially for the size under 15\" , like 12.1\" , 10\", 9\" , 7\" and many customized size.

Projected Capacitive Touch (PCT; also PCAP) technology is a variant of capacitive touch technology . All PCT touch screens are made up of a matrix of rows and columns of conductive material , layered on sheets of glass . This can be done either by etching a single conductive layer to form a grid pattern of electrodes , or by etching two separate , perpendicular layers of conductive material with parallel lines or tracks to form a grid . Voltage applied to this grid creates a uniform electrostatic field , which can be measured . When a conductive object , such as a finger , comes into contact with a PCT panel , it distorts the local electrostatic field at that point . This is measurable as a change in capacitance . These kind of the touch screen are well used in many applications.

Advantage

■ Controller IC close to sensor for best performance

■ Superior image clarity with high Transparance
■ More application in electronic fields

■?Sensitive and fast response

■?5 points touch at one time

■?Highest resolution

Application

■ Mobile Phone ,?E-book , Ipad

■?Medical Machine

■ Car navigation (GPS)
■ Advertise Machine

■ Hand held game device
■ All in one Personal Computer

Electrical Performance

Q&A

Q: What is your MOQ?

A: The MOQ is 100pcs, we will send samples before the order.

Q: How long time for 5000pcs ?

A: 4-7 Days is okay with laser Logo.

Q:How about shipping?

A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK. We usually send the items via DHL, if in large quantity, we will send by sea.

Q: How long is your quality guarantee period?

A: 1 year
