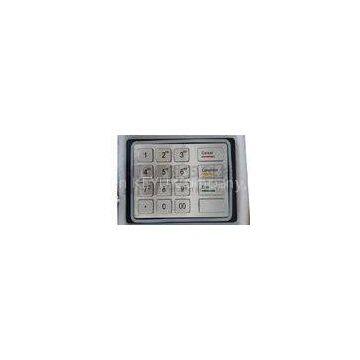

Stainless Steel Encrypted Pin Pad Waterproof PCI 1.3 For ATM

Quick?Detail:

1.?PCI1.3?certified?EPP

2. Wosa XFS support

3.?Waterproof,?dust-proof?and?vandal?proof

4.?CE,FCC,ROHS,IP65,PCI1.3?certificate

5.?USB?or?RS232?interface

6.?Customized?layout

Description:

Features

16?keys?PCIv1.3?approved?encryption?PIN?pad

Water,?dust?and?vandal?resistant

Etching?and?inking?lettering

Brushed?surface

1?year?warranty,?can?be?upgrade?longer

Battery?inside?will?provide?5?years

PIN?storage?without?power?input

Stainless?steel?keypad?with?etched?and?colored?graphics

All?keypad?text?is?black

Function?keys?can?have?colored?graphics

Embossing(X?O?I)?is?available?option

Designed?for?public?,outdoor,?industrial?and?other?extreme?surroundings

Can?be?cleaned?with?soapy?water,?disinfectant?pr?other?cleaning?agents

Mechanical

IP65?,?NEMA4,?IK7

Key?durability:?more?than?1?million?click?times

Operation?temperature:?-10℃?to?+50℃,can?be?extended?to?-40℃?to?+80℃

Storage?temperature:?-40℃?to?+80℃

Relative?humidity:?30%?to?95%

Atmospheric?pressure:?50kPa?to?110kPa

Approvals:

PCI1.3

Passed?the?certification?of?China?Central?Bank?card?testing?center

CE,?RoHS,?FCC

Electrical:

Power?input:?+5V/DC

EMC?emission:?EN55022:2006

EMC?emission:?EN55024:1998+A1:2001+A2:2003

Mechanical?trackball?resolution:?X:>200dpi,?Y:?>190dpi

ESD?resistant:?more?than?15kV?by?direct?contact

Logic?Characteristic:

Well?managed?key?management?system.

Completed?and?handy?API?lib?and?test?program.

The?algorithm?supports:

-TEDS?MAC?algorithm(ANSI?X9.19)

-TDES?PIN?encryption

-PINBLOCK?Conforms?to?ISO9564-1:format0,?format1,?format3

Less?than?1?second?for?the?MAC?operation?in?3DES?with?512?bytes?of?data?PIN?encryption.

Operated?in?security?module.

Drivers?for?Windows?NT/2000/XP.

Applications:

Used?for?date?input?of?Kiosks,?Industrial?platform,?Banking,?Medical,?Gas?pumping,?Gaming?machine?and?Security? equipment.

Specifications:

Competitive?Advantage:

1.?As?a?leader?manufacturer?since?1995,we?have?more?than?10?years?experience?in?such?area.

2.?All?of?our?products?are?with?strict?QC?testing?to?ensure?high?quality?products?for?you.

3.?With?such?a?mass?production,?we?can?provide?you?the?most?competitive?prices.
