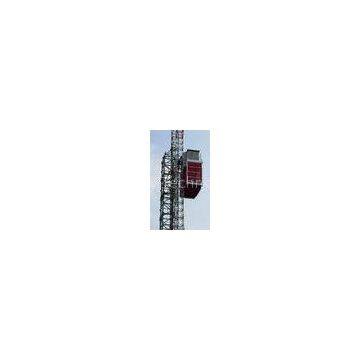

3.2 1.5 2.5m VFD Construction Lifts / Building Lifter High Reliability
- T/T L/C D/P D/A
- 7 days
You May Like
-
Rack , Pinion Building Personal / Material hoist With Single Cage 150m Lifting Height
-
Red Electrical Building Site Hoist for Industrial and Civil Architecture
-
1000kg Safety Electric Construction Material Hoist / Elevator for Passenger
-
Easy Install 1000kg 1 Ton Construction Material Lifting Hoist for Ship Industry
-
Custom Size Construction Hoist Elevator With Multiple Choices Of Doors
-
CE / ISO Construction Material Hoist 1000kg for Bridge , Underground Project
Product Details
| Brand Name | BORUIDA | Place of Origin | China | |
| Model Number | SC-series |
Product Description
Certification:CE,ISO
?3.2 x 1.5 x 2.5m VFD Construction lifts / Building Lifter SC320 with Mast Hot-dip Galvanized
?
?
Quick Detail:
?
|
Name |
Other Name |
Brand Name |
Control |
|
Construction Lift |
Construction Lift SC 320 |
BORUIDA |
DOL and FC |
|
Loading Capacity |
3200kg |
Certificate |
CE |
?
?
Description:
?
Construction Lift SC 320 is installed and dismounted conveniently and can grow as high as the building grows height.The Construction Lift has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
It is efficient and safety vertical transporting equipment
?
?
Applications:?
?
SC serialization of products Construction Lift is a Rack and Pinion EL. Construction Lift widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.?
?
?
Specifications
Standard?technical datas of?single cage?:
|
Parameter |
SC100 |
SC160 |
SC200 |
SC270 |
SC320 |
|
Rated |
1000 |
1600 |
2000 |
2700 |
3200 |
|
Rated lifting speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated passenger number |
12 |
18 |
24 |
30 |
38 |
|
Max. lifting height(m) |
150 |
250 |
450 |
450 |
450 |
|
Engine power(kW) |
2*9.5 |
2*11 |
2*13 |
3*18.5 |
3*22 |
|
Cage?inner dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Cage?weight (kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast?section weight |
145 |
145 |
163 |
163 |
163 |
|
Mast section dimension (mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety device type |
?SAJ30-1.2 |
SAJ40-1.2 |
SAJ40-1.4 |
