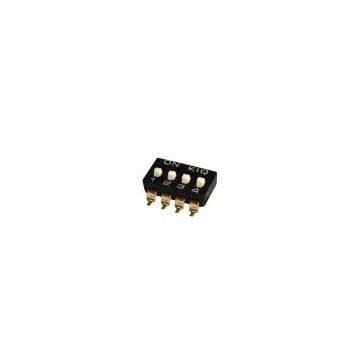

SMD SWITCH

Mechanical:
1, Operation Force: 8N max.
2, Operation Temperature: -40-+85°C
3, Storage Temperature: -40-+85°C
4, Stroke: 1.0mm

Electrical:
1, Electrical Life: 2000 operations cycles per switch 24V DC, 25mA
2, Non-Switching Rating: 100mA, 50V DC
3, Switching rating: 25mA, 24V DC
4, Contact resistance:
(a) 50mΩ max. at initial
(b) 100mΩ max. after life test
5, Insulation Resistance: 100mΩ at 500V DC
6, Dielectric Strength: 500V AC/min
7, Circuit: Single pole single throw
8, Capacitance: 5pF max.

Soldering and cleaning processes:
1, Keep all switches contact in their "OFF" position for all operations
2, WAVW soldering: Recommended Solder Temperature at 500°F (260&;deg;C), 5 seconds
3, Hand soldering: Use a soldering iron of 30W, controlled at 608°F (320°C),
approximately 2 seconds while applying solder
4, Cleaning process: Flux clean with force rinse, high agitation or triple bath cleaning
method; Freon TF or TE give excellent results; When vapor methods are used,
do not subject the switch to solvent at temperature above 125°F (51°C)
