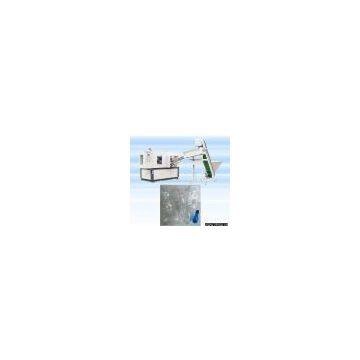

Sell PET Bottle Blow Molding Machine

Place of Origin	China

Model No.:JS-600B
Product Origin:China
Brand Name:
Price Terms:FOB Ningbo / Shanghai
Payment Terms:T/T or L/C
Certification:CE
Description:Features: JS600 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle. (1) Reasonable design, full automatic control, save power and labor. Adopt high quality components. (2) Feeding system carries the performs by robot automatically. (3) Infrared oven heater adopts the quartz lamp to heat the PET tube. (4) Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble -shooting, maintenance and other benefits. (5) We have perfect service after sales. Main parameters: A: Specifications: 1. Mold gathering strength (kN): 150 2. Mold traveling distance (mm): 230 3. Pulling rising traveling distance (mm): 350 4. Mold hole number (cavity): 1 B: Bottle specifications: 1. Max. Bottle capacity (L): 5 2. Max. Tooth part size (mm): 120 3. Max. Bottle diameter (mm): 180 4. Max. Bottle body height (mm): 350 C: Theoretic production capacity (bph): 600-900 D: Electric power specifications: 1. Total power consumption (kW): 31 2. Thermal rating (kW): 30 E: Air pressure specifications: 1. Operating pressure (kg/cm2): 8 2. Low pressure gas consumption (L/min): 800 3. Bottle blowing pressure (kg/cm2): 30 4. High-pressured gas consumption (L/min): 900 F: Machine weight: 1. Machine size (m): 2.5 x 1.5 x 2 2. Machine weight (MT): 2 JS-600 is one specialty blows makes PET entire to model bottle two steps automatically to blow the bottle equipment, JS-600 most greatly may blow makes 5L, is suitable to blows the system by the PET material any shape carbonic acid beverage bottle, the mineral spring thermos, the agricultural medicine bottle, the cosmetics bottle, the wide mouth bottle other packing capacities. A, Uses Mitsubishi (Japan) the computer control system, the performance is stable; B, Uses the infrared lamp tube to heat up, penetrating power strong, bottle semi-finished product rotation being heated, being heated is even, the lamp tube, the baffle plate highly may adjust, suits the different bottle semi-finished product, the temperature may touch the screen adjustment, controls warm fine, holds controls the simple convenience; C, Each machinery treat as all has the foolproof device, when some working procedure appears the breakdown, touches the screen auto-alarm demonstration, putting in order machine cut to secure state; D, Various movements actuate by the import name brand air cylinder, stable reliable, the service life grows, does not have the pollution, the noise is low and so on the merit; E, Uses the double crank connecting rod to lock the mold, locks the mold strength to be strong; F, The air course design act and the air flush divides into two parts, satisfied will blow the bottle, treats as the different barometric pressure; G, The operating procedure manually has, the entire automatic two ways; Simple, convenient, is easy to understand; H, the safe reliable unique valve position design, is lets the air course change clear; I, The production technical process completely automation completes, has the investment province, the efficiency high, the ease of operation, the service is simple and so on the merit; J, The bottle body exempts is polluted; K. The cooling system achieves centrifugal the cooling effect.
