Home > Products > AHD DVR > High Definition Low Consumption AHD DVR Real time recording for home security

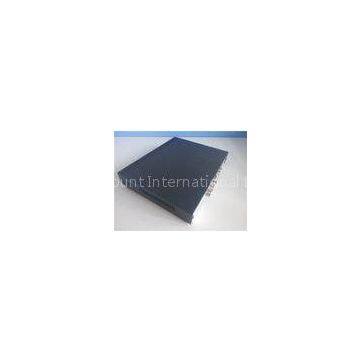

High Definition Low Consumption AHD DVR Real time recording for home security
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Professional Night Vision Wifi PTZ Camera , Remote Pan Tilt two way audio camera
-
Hi 3518E + OV9712 wireless ptz security cameras , p2p ip camera external surveillance system
-
IEEE 802.11n Wireless 1.3 MP Day Night PTZ IP Auto Motion Tracking Camera With Array LED
-
High resolution 1280 720 White Wireless PTZ IP Camera For Railway Stations Surveillance
-
Home surveillance cameras p2p full hd 1080p ptz ip camera RJ45 , 12V DC output
-
Network Infrared Dome PTZ IP Camera With CMOS Remote Monitoring IR-CUT HD Night Vision
Product Details
| Brand Name | Fortune Mount International Ltd. | Place of Origin | China | |
| Model Number | AHR-AP104 |
Product Description
Certification:CE, FCC
High Definition Display Low Consumption AHD DVR Real-time Capture Motion Detection?
Quick Detail:
double stream design Real-time monitoring Mobile phone remote monitoring Supports multiple video backup Security industrial design, stable performance, heat dissipation is stronger Support hd AHD simulation and common analog video camera coaxial line access?Features:
Video input: BNC× 8, Video output: BNC× 1, VGA(1280*1024) X 1, HDMI output: 1920× 1080
?P2P/NAT Function: Plug and Play fuction (No setting for DDNS and port forwarding when IE browser remote view)?
?Display Resolution: 720P, Record Resolution: 720P?
Record Frame Rate: 4*25FPS@720P(PAL), 4*30FPS@720(NTSC), Audio input: 4ch, Audio output: AV× 1?
Hard disk info: Support One SATA HDD, PTZ: RS485, USB port: Two High speed USB2.0?
Remote View: Support IE browser and client software, Support for mouse operation, come with 1pc mouse.?
?Support Mobile phone Surveillance?
Hard disk info: Support One SATA HDD, PTZ: RS485, USB port: Two High speed USB2.0?SPECIFICATIONS
| Performance Parameters | ||
| Sensor | Main Board Sensor | Industrial Embedded Microprocessor |
| Operating System | Embedded LINUX operating system | |
| System | Video Coding | H.264 |
| Coding Resolution | 4CH 720P(1280x720) | |
| Video Frame | PAL:1~25FP/S;NTSC:1~30FP/S | |
| Video Bit Rate | 512Kbps-4096Kbps,Customizable,Default to be 2048Kbps | |
| Stream Type | Video Streaming / Composite Stream | |
| Double Stream | Support | |
| Audio Coding | G.711 | |
| Audio Sampling rate | 8KHz,16Bit | |
| Audio Bit Rate | 64Kbps | |
| Video Spec | Video Input | 4CH BNC Port |
| Video output | 1CH CVBS,1CH VGA output,1CH HDMI port | |
| Recording Manage | Recording Mode | Automatic recording, Manual Recording, Motion Detection Recording, Alarm Recording |
| Playback | 4CH Playback | |
| Backup Mode | Mobile Hard Disk / U-Hard-Disk / Network | |
| Network | Protocol | Support TCP/IPUDPRTP/RTSPDHCPPPPoEDDNSNTP etc. |
| IE Control? | With WEB Server to modify configuration parameters and remote control IE | |
| P2P Cloud | Support login via to meet One-Key Remote Control. | |
| Mobile Remote | Support IOS, Android,Blackberry, Symbion, Software . | |
| HDD | HDD Port | Support 1SATA port max 4TB,No e-SATA port. |
| Interface | Network/USB | 1?RJ45 port, 100M E-internet Port ; 2PCS USB Port |
| Interface | 1PC Standard RJ485 port | |
| Others | Power/Consumption | DC12V? ; less than15W(No HDD) |
| Temperature/Humidity | Temperature:-10deg-+55deg/? Humidity: 10%~90% |
