Home > Products > DVB-S2?Digital?Satellite?Receiver > Skybox F4 1080P PVR FTA High Definition Digital Satellite Receiver DVB-S2 Support GPRS Sharing

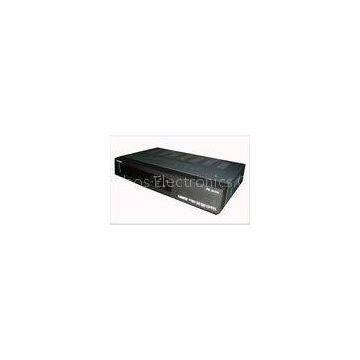

Skybox F4 1080P PVR FTA High Definition Digital Satellite Receiver DVB-S2 Support GPRS Sharing
- T/T L/C D/P D/A
- 7 days
You May Like
-
Skybox F4S DVB-S2 HD Satellite Receiver 1080p Digital TV Receivers Support USB WIFI GPRS
-
OPENBOX S9 Full HD PVR MPEG-4 DVB-S2 Digital Satellite Receiver 1080P Sharp Tuner 2 * Scart CI
-
Original Openbox S10 HD DVB-S2 Digital Satellite Receiver CCCAM Newcam MGcam
-
High Difinition Indian Android IPTV Box Amlogic S805 Quad Core Android Smart TV Box XBMC
-
Original OPENBOX X5 HD DVB-S2 Digital Satellite Receiver IPTV Support Internet Ethernet
-
HD PVR WIFI 1080P Full HD DVB-S2 Digital Satellite Receiver Openbox Z5 Support CCcam Newcam Mgcam
Product Details
| Brand Name | skybox | Place of Origin | China | |
| Model Number | RS-SKF4 |
Product Description
Certification:CE/ROHS/FCC
Original Skybox F4 1080P HD PVR FTA Satellite Receiver, Support GPRS Sharing
Support GPRS Connected Network, With VFD DISPLAY.(New funtion compare to Skybox F3).
Support USB wifi, weather forecast?
Main Features:
Dual-Core CPU, 396 MHz MIPS Processor
Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
Fully compliant MPEG-2 MP@HL & MP@ML;
Fully compliant MPEG-1 Layer I & II & III, Dolby Digital Audio(AC3);
SCPC & MCPC receivable from C/Ku band satellites;
multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported)
NIT search supported;
Support MPEG-5;
Support HDMI 1.3;
Support PVR(store in USB disk);
Multimedia files playback(by USB);
Support Electronic Program Guide(EPG) for 7 days;
Teletext and subtitle out through OSD;
Support multi-lingual DVB subtitle and teletext;
Automatic and manual channel scan options;
automatic service scan
channel-change time < 1 second
OSD in many languages and skin-support
Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Portuguese, Russian, Turkey, Polski, Arabic, Thailand, selectable
LED Display
Multiple display mode: 1080p/1080i/720p/570p/576i/480p;
MPEG-2 / H.264 Hardware decoding
Videotext Decoder
Screen format:auto, 4:3, and 16:9;
Upgrade software through USB2.0 port;
Powerful program management function, parent lock;
CA 1x slot
10/100Mbit Ethernet Interface
directly bouquet-lists?
General Specifications:
|
Board configuration |
396MHz MIPS CPU 128MB DDRII400 RAM Memory Clock 198MHz 4MB Serial Flash Single Tuner DVB-S2 demodulator |
|
Power Supply |
Input 100V-240V 50/60Hz |
|
Power Consumption |
30W Max/1W Standby (it\'s optional by customer?s board) |
|
RS232 |
For FW Upgrading |
|
Standard Receiver Standard |
DVB-S2 Standard (DTSI EN 302 307) |
|
Input Frequency Range |
950MHz~2150MHz |
|
Input Signal Level |
-25dBm ~ -65dBm |
|
Demodulation |
QPSK, 8PSK, 16APSK |
|
Transport Stream |
MPEG-2 ISO/IEC 13818 Transport Stream Specification |
|
MPEG Profile Level |
MPEG-2 SD, MPEG-2 HD, H.264/AVC SD, H.264/AVC HD |
|
LNB Power & Polarisation |
Vertical +13.5V, Horizontal 18V, Current: MAX 500ma |
|
Multi Satellite Receiving |
22K switcher, DiSEqC1.0, DiSEqC1.1, DiSEqC1.2, USAL |
|
Conditional Access System |
1 CA card reader Slots |
|
A/V Output ports |
YPrPb, RCA with CVBS , SCART with CVBS, HDMI 1.3, Left/Right analog audio output(RCA) |
|
Aspect Ratio |
Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box. |
|
Audio Decoding |
MPEG1 Layer I, MPEG1 Layer II, MPEG 1 Layer III, MPEG2, AC3. |
|
Audio Mode |
Stereo/MONO/Left/Right |
|
DVR supporting |
DVR with USB HDD, Time shifting with USB HDD |
|
USB2.0 High Speed Host |
1USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card or FW Upgrading. |
|
File System |
FAT12, FAT16, FAT32, NTFS |
|
Media Supporting |
JPG, BMP, MP3, WMA |
|
Ethernet Interface |
10Mbit |
|
Storage Temperature |
0oC To +50oC |
Package contents:
??1x?F4?HD?Box
??1x?Remote?control
??1x?Power?Supply?Cable
??1x?HDMI?Cable
??1x?User?Manual
?
