20W desktop switching power supply
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | CH | Place of Origin | China | |
| Model Number | SPU20A series |
Product Description

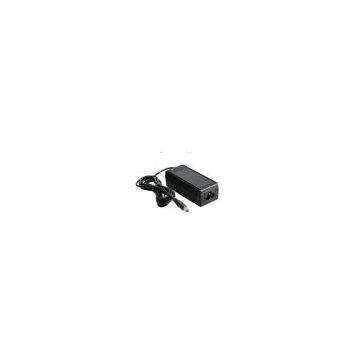

20 watts desktop type AC/DC switching mode power supply.
Single output. Output voltage available from 5~48VDC.
All supplies are UL 94V-1 min compliant. All models meet FCC Part-15 class B & CISPR-22 class B emission limits and are designed to comply with UL/CUL(UL 60950-1), TUV/GS(EN 60950-1) and new CE requirements.
All units are 100% burned in and tested.
Wide input voltage 90 to 264 VAC, 47 to 63 Hz.
CEC & Energy Star compliant
3 years warranty.
Specification:
Input Voltage:90-264 VAC
Input Frequency: 47-63 Hz
Input Current: 0.4A at 115VAC/0.25A at 230VAC
Efficiency: 85 %
Hold-Up Time: 12 mS min
Line Regulation: 0.5%
Load Regulation: 3%
Ripple & Noise: 1% p-p max
Safety: UL/CUL, TUV/GS, CB, CE, PSE
Model List:
SPU20A-102: 5~6 VDC/3.00~2.50A 15W maximum
SPU20A-105: 11~13VDC/1.81~1.53A 20W maximum
SPU20A-106: 13~16VDC/1.53~1.25A 20W maximum
SPU20A-108: 21~27VDC/0.95~0.74A 20W maximum
SPU20A-109: 27~33VDC/0.74~0.60A 20W maximum
SPU20A-111: 40~48VDC/0.50~0.41A 20W maximum
