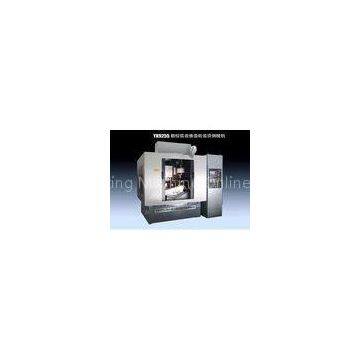

High Speed CNC Gear Chamfering Machine With Modulus 4.5 - 13

High Speed CNC Gear Chamfering Machine With Modulus 4.5 - 13

Quick Detail:

YK9255 Machine tools are used for spiral bevel gears (wheels) cone intersection of involute tooth surface and surface machining chamfering machines. Through the chamfering process of gear can make to reduce noise in gear meshing process, reliable transmission, improving accuracy, avoiding artificial chamfering edges uneven width and prevent environmental pollution caused by adverse factors such as.

Description:

The machine adopts Germany Siemens 802D CNC system, with three CNC axes: the horizontal axis (x axis), table rotation axis (the y axis), vertical linear axis (z axis) to realize three axes and use finger wheel, grinding wheel spindle spindle-driven, intuitive and convenient operation, the stability is good.

In terms of software with powerful computing capabilities, for calculation of chamfering of almost all included, precision high, achievable human-machine interface. Grinding head spindle of machine tools in a different structure: rigid, flexible grinding grinding. Hydraulic clamping the workpiece, grinding and dressing of grinding wheel use automatic completion of the whole process.

The machine used on artificial, feeding method.

Specifications:

Company Profile:

Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers. With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery. Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide a great variety of advanced gear machinery to the market. The company is using the leading 3D designing software for developing and designing. The company combines producing with research and development by Cooperating with TIANJIN University and other colleges for many years.
