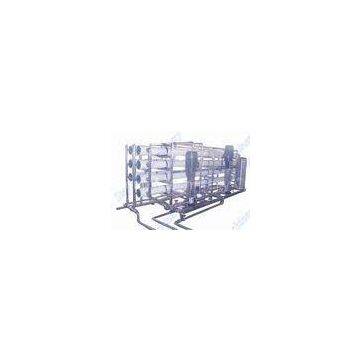

High Efficiency Underground Water Treatment Equipments / Reverse Osmosis Plant

Quick Detail

High Efficiency Reverse Osmosis Plant / Underground Water Treatment Equipments

Description:

It is main component in water purification system. This equipment can remove most of inorganic salts, and almost organic matters and microbes in water. During separation process, RO equipment has features such as: no phase change, high desalination rate, small in size, easy automatic control, and no environmental pollution.The RO membrane in it is the advanced DOW spiral-wound polyamide composite membrane. The average desalination rate of a single membrane is over 98%. Based on content characteristics of different substances in water, the aided design software of RO, and our rich operating experience, we have paid great attention to the scaling sediment problem caused by too much concentration. So the service life of RO system is largely prolonged. Since RO system is inevitably polluted sooner or later, we furnish automatic flushing device and pharmaceutical irrigation device with our RO system to wash off contamination and guarantee the high efficiency water treatment performance of the system.

Basic Principles:

Semi-permeable membrane has selective permeability, and this membrane let water permeate but not salt. The impressed pressure difference between brine compartment and fresh water compartment is larger that that of osmosis pressure difference, thus it can drive water to move from brine compartment to fresh water compartment. The reverse osmosis technique is used to remove impurities in water such as inorganic ions, bacterium, viruses, organic matters and colloids, thus high quality purified water can be obtained.

Specifications

Model:?????????????? RO-10

Input: ? ? ? ? ? ? ? ? ? 12T/H

Output:?????????????? 10M3/H

Membrane quantity:????? 10

Size: ? ? ? ? ? ? ? ? ? ?8″×40″

Producer:???????? ? ?USA DOW

Recovery rate:???????? ﹥80%

Pressure protection (switch)Quantity:2 units???????????????????????

Producer: ? ? ? ? ? ? ? ? ? Import

Other Components:???Joint venture brands

Flow meter: ? ? ? ? ? ? ?2 units

Manometer: ? ? ? ? ? ? 4 units???????????????????

Measurement range:??? 0-3.0Mpa

Associated valves, pipe fittings, stainless steel pipe

Dimension:??????? 4000×1200×1650mm

Competitive Advantage:

automatic control for water purification, water level sensor, high quality stainless steel 304.

Why to choose water treatment system from Stepchina machinery?

1. scientific purification process.

2. good welding and polishing working.

3. sensor for automatic control

4. reliable electric elements: Siemens, Schneider and Mitsubishi

5. professional installation service and training service
