Brand Name	JHY-razor barbed wire		Place of Origin	China
Model Number	JINHANGYI

Product Description

^{Razor Wire

The diameter of the razor wire coils can range from 18 inches to 60 inches, while 30-inch products are among the most often specified for medium or high security applications. Concertina configuration is available, which makes the razor wire barrier much more dense and difficult to penetrate. It is almost vital for products of 30 inch diameter and greater.

Please tell us the specifications of razor wires that you need and we constantly strive to exceed the expectations of our customers.

CBT: Concertina Barbed Tape; BTO: Barbed Tape Obstacle}

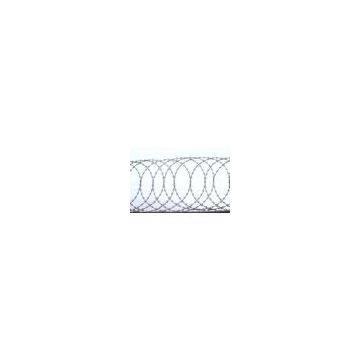

^{Razor Wire}

^{Typical Razor Types}
^{Reference Number}	^{Blade Style}	^Thickness	^{Wire Dia}	^{Barb Length}	^{Barb Width}	^{Barb spacing}
^BTO-10		^0.5±0.05	^2.5±0.1	^10±1	^13±1	^26±1
^BTO-12		^0.5±0.05	^2.5±0.1	^12±1	^15±1	^26±1
^BTO-18		^0.5±0.05	^2.5±0.1	^18±1	^15±1	^33±1
^BTO-22		^0.5±0.05	^2.5±0.1	^22±1	^15±1	^34±1
^BTO-28		^0.5±0.05	^2.5	²⁸	¹⁵	^45±1
^BTO-30		^0.5±0.05	^2.5	³⁰	¹⁸	^45±1
^CBT-60		^0.6±0.05	^2.5±0.1	^60±2	^32±1	^100±2
^CBT-65		^0.6±0.05	^2.5±0.1	^65±2	^21±1	^100±2

^{Razor Wire Specification}
^{Outside Diametar}	^{No. of Loops}	^{Standard Length per Coil}	^Type	^Notes
^450mm	³³	^7-8M	^CBT-60.65	^{Single coil}
^500mm	⁵⁶	^12-13M	^CBT-60.65	^{Single coil}
^700mm	⁵⁶	^13-14M	^CBT-60.65	^{Single coil}
^960mm	⁵⁶	^14-15M	^CBT-60.65	^{Single coil}
^450mm	⁵⁶	^{8-9M (3 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
^500mm	⁵⁶	^{9-10M (3 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
^600mm	⁵⁶	^{10-11M (3 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
^600mm	⁵⁶	^{8-10M (5 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
^700mm	⁵⁶	^{10-12M (5 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
^800mm	⁵⁶	^{11-13M (5 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
^900mm	⁵⁶	^{12-14M (5 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
^960mm	⁵⁶	^{13-15M (5 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
^980mm	⁵⁶	^{14-16M (5 CLIPS)}	^{BTO-10.12.18.22.28.30}	^{Cross type}
