Home > Products > Ceiling Filter/roof filter > F5 Ceiling Filter for Spray Booth 560G, 600G

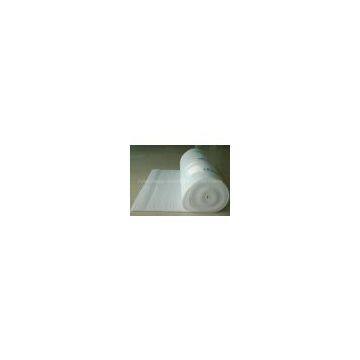

F5 Ceiling Filter for Spray Booth 560G, 600G
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Pocket Filter / Air Filter (F5, F6, F7, F8, F9)/bag filter/pre filter
-
Pre Synthetic Filter
-
Laminated Roll Media with Wire for Pleated Filter
-
V Type HEPA Filter with ABS Frame
-
Mini Pleat Compact V Bank Filter H13, H14
-
Pre Filter /coarse filter/primary filter/paint spray booth filter(AZ-150G/200G/300G)
Product Details
| Brand Name | JW | Place of Origin | China | |
Product Description
Spray booth Ceiling filter/Roof filter with adesive or tackifier, F5 Diffusion Media
Applications:
1. Ceiling filter is developed specifically for the advanced technology painting industry like auto/furniture paint spray booths.
2. Widely used in auto assembly plants and refinishing facilities.
Features:
1. The filter media is constructed of a progressively structured and non-broken resin bonded synthetic media with a scrim backing.
2. Gradient density structure ensures uniform air distribution throughout the spray booths.
3. With full depth tackifier impregnated in each fiber to prevent dust migration and fiber release and removes more paint-damaging particles and last longer working life.
4. With fiberglass scrim net reinforced in air leaving side for high tensible strength/high dust holding capacity.
Specification: Within 2.2m width; Adjustable length. Make according to customer's order. General stock: 1.6m*14m, 1.6m*21m, 2.0m*12m, 2.0m*21m
ITEM NAME | F5 Air Filter/Ceiling Filter | |
Models | LW-650G | LW-600G |
Weight | 650g/m2 | 600g/m2 |
Thickness | 22mm | 22mm |
Air velocity | 0.25m/s | 0.25m/s |
Max air flow | 900m3/h | 900m3/h |
Initial resistence | 27Pa | 25Pa |
Final resistence | 400Pa | 400Pa |
Medium arrestance | 99.00% | 98.20% |
Dust holing | 470g/m2 | 428g/m2 |
Filtering grade | F-5/EU-5 DIN24185 | F-5/EU-5 DIN24185 |
Fireproof level | F-1 DIN53438 | F-1 DIN53438 |
Max temperature | 120 oC | 120 oC |
