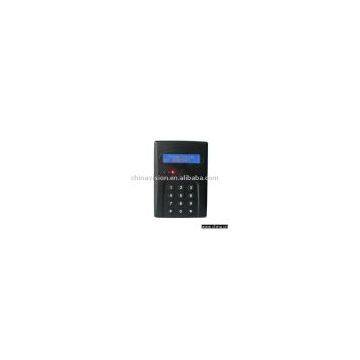

Economic Stand-Alone Dual-Access Control and Time Attendance (EM Technology)

Place of Origin	China

EL500-X-2A is a low cost stand-alone access control system which can function asa single door access control solution and can easily be connected in a RS485 network(up to 98 units). EL500-X-2A can work as a time attendance system with local cust-comized application management software thanks to his excellent platform with alltechnical documentation, API and programmer tools. Advantages* Stand-alone system or Network via RS485 (max. 98 units)* Support EM technology, 125kHz* External TCP/IP converter module available* Card / Card + Pin / Pin mode* External reader for anti-passing (wiegand port)* All I/Os and operating times user keypad programmable* Dual function for access control and time attendance* Watch-dog timer & power on resetSpecifications: * Power supply 9-24VDC * Power consumption Max. 1W* Cardholder: 2, 000 * Stand alone: Yes* Operation mode Card/Card + Pin/Pin * Records: 10000* Alarm 1) door non-closed detection 2) housing sabotage alarm 3) door broken alarm4) try-out error alarm 5) Duress alarm in case of emergency 6) 90% full of memory* Memory: 128 K Byte EEPROM* Technology EM4100 or compatible* Time zone: time code: 10 time interval: 5 Holiday code: 10 Holiday: 32* Keypad 12 keys, backlight* TCP/IP external TCP/IP module* Input device: 2 outputs (lock, alarm)* Housing: ABS* Output device: 3 outputs (1 relay output, 1 photoelectric * Temperature range: 0 to 50oC* Reading distance: 10-15cm (depending on transponder) * Relative humidity: 20-95% (non condensing)* Online with PC yes, RS232, up to 98 via RS485, 4800, 9600, (default), 19200 and38400bps software programmable * Indicators Buzzer and LED* Indoor / outdoor: Indoor* LCD: 16 characters x 2 line, backlight producing area:China payment:T/T in advance supplying capacity:50,000pcs/month
