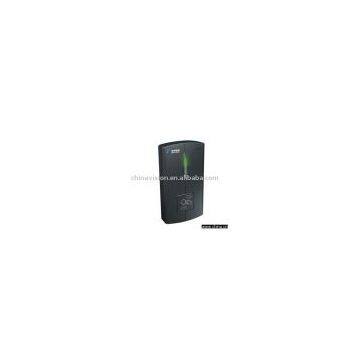

Economic Stand-Alone Access Control System

Place of Origin	China

EL500-X-XB(C) is a low cost stand-alone access control system which can functionas a single door access control solution and can easily be connected in a RS485 network (up to 98 units).EL500T-X-XB(C) is not only a stand-alone access control system, but also a time attendance terminal. It also can be connected in a RS485 network (up to 98 units).Advantages* Stand-alone system or Network via RS485 (max.98 units)* Dual function: access control + time attendance with real time clock (RTC) and 1000 events(EL500T)* Support EM technology, 125kHz* External TCP/IP converter module available * Up to 512 user, including one master card* Card / Card + Pin / Pin mode* External reader for anti-passing (Wiegand port) * Housing sabotage alarm* All I/Os and operating times user keypad programmable* Toggle mode for door opening/closing* Self diagnostics* Watch-dog timer & power on reset* Door opening setting function* Try-out error alarm and keypad stops automatically for 30 secondsSpecifications* Power supply 9-24V DC * Cardholder 512 including one master card* events: 1000 records with real time clock (RTC) (EL500T) * Operation mode Card/Card + Pin/Pin* Alarm 1) door non-closed detection 2) housing sabotage alarm 3) door broken alarm 4) try-out error alarm * Input device 2 inputs (push button, door state sensor) * Output device 3 outputs (1 relay output, 1 photoelectric isolation output: 1 TTL output) * Reading distance 10-15cm (depending on transponder) * Online with PC: yes, RS232, up to 255 via RS485, 4800, 9600, (default), 19200 and 38400bps Software programmable* Power consumption Max. 1W* Stand alone Yes* Reading time 30ms* Keypad 12 keys, backlight* Technology EM4100 or compatible* TCP/IP external TCP/IP module* Indicators Buzzer and LED* Housing ABS* Temperature range -20 to +65°C* Relative humidity 20-95% (non condensing)* Protection class IP65* Indoor / outdoor Both, potted version, available on requestSpecifications are subject to change without notice. producing area:China payment:T/T in advance supplying capacity:50,000pcs/month
