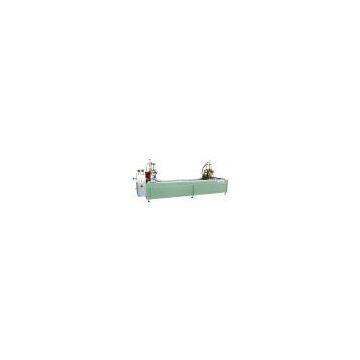

SHHZ2-3500 Two-head Welding Machine for Colored PVC

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	tianma		Place of Origin	China
Model Number	SHHZ2-3500

Product Description

Structure feature: This machine is made up of two heads, frame, electric controller box, profile-holding frame etc. The left head can move 20mm with level rail by the system. Every head has its separate location structure, pressing structure, heating structure, and head box. Function explanation: This machine is the necessary equipment for processing chromatic PVC profile, it can complete the profile welding corner cleaning together alone for making chromatic PVC win-door. This machine uses PLC control, pneumatic drive. All motion pairs adopt linear bearing guide system. This machine features advanced technique, high precision, reliable performance, and easy operation etc. -------------------------------------------------------------------------------- Working Air Pressure 0.6~0.8Mpa Input Voltage 220V 50HZ Air Consumption 200L/min Input Power 3.0Kw Welded Range 400×400~3500×3500mm Welded profile height 20~150mm Welded profile width 120mm(max) Overall Dimension 4400×1300×1500mm Weight 1000Kg
