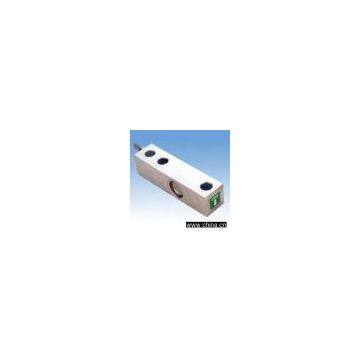

Sell Load Cell

Place of Origin	China

Model No.:SQB
Product Origin:China
Brand Name:KUANYI
Price Terms:FOB/C&F/CIF
Payment Terms:T/T in advance or L/C at sight
Certification:RoHS, OIML
Description:SQB 1. With super-petty volume, designed for super-low scale table 2. Special connection device cab be deployed 3. Applied to platform scales and proportioning control system Specifications: 1) Rated load: 0.5, 1, 1.5, 2, 3, 5t 2) Sensitivity: 3.0±0.002mV/V 3) NON-Linearity: ±0.02% F.S. 4) Hysteretic Error: ±0.02% F.S. 5) Repeatability Error: 0.01% F.S. 6) Creep (30min): ±0.02% F.S. 7) Zero Balance: ±1% F.S. 8) Temp. Effect on zero: ±0.02% F.S./10°C 9) Temp. Effect on span: ±0.02% F.S./10°C 10) Input Impedance: 400±4Ω 11) Output Impedance: 352±2Ω 12) Insulation Resistance: ≥5000MΩ 13) Operating Temp Range: -30~+70°C 14) Safe load: 150% F.S. 15) Limit load: 300% F.S. 16) Recommend voltage: 10~12V DC 17) Max. voltage: 15V DC 18) Protection Class: IP67 19) Construction: Alloy steel 20) Cable Length: 4m 21) Cable Diameter: 5mm
