Product Details
| Brand Name | CY | Place of Origin | China | |
Product Description
Certification:ISO9001:2008, SGS, ROSH

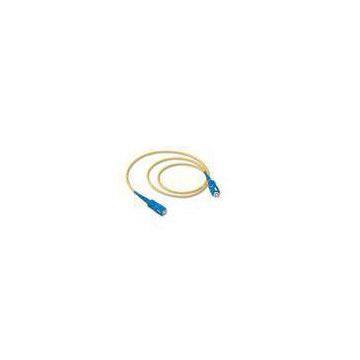

High dense connection SC Fiber Optic Patch Cord general push / pull style connector
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed.
Features:
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability
Application:
Mechanical Drawings:
Specification:
|
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Operating temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
|
|
