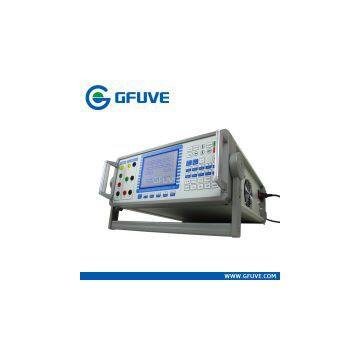

GF303 Program-controlled three phase standard power source

INTRODUCTION:

GF303 Program-controlled Three-phase Standard Power Source

is suitablefor power department, measuring department,

quality control department,research units, institutions of

higher learning, electric energy meter, powerdistribution

terminals, power supply management, load control, power

quality,reactive power compensation device and the

production of enterprise etc.

Features:

1.To set up and take the loadregulation of voltage, current,

 phase angle, frequency and power factor, also can be used

as AC current source, ACvoltage source or power source.

2.To set 2-128 times of theamplitude and phase harmonics,

and it can be added to the base wave in everyharmonic output.

3.Frequency value is adjustable (ABand phase C).

4.Voltage, current output a widerange, big power, high stability, waveform distortion degree is small.

5.Strong with load ability, but itcan take capacitive, sensibility, resistance of composite type load or load andload regulation is higher than 0.01%.

6.To apply the 32 bit MPU + DSP +FPGA, powerful flexible.

7. To use hardware PID, fastresponse, the change of load will not cause output volatility.

8.Industrial frequency waves ashigh as 50000 points a week of the wave kneading, signal output without filter,precise output waveform, the harmonic output precision, harmonic distortiondegree is small.

9.Range switching automatically

10.To use software calibration,simple operation, stable and reliable.
