Single Layer LED PCB , Aluminium PCB Board with High Thermal Conductive Al 6061
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Black Soldermask Immersion Gold Aluminium PCB Board for Solar Panel
-
Billboard / Control Panel Customized Aluminum Base PCB Printed Circuit Board
-
Single Sided Aluminium PCB Board with AL1050 / AL 5052 / AL 6061 Base
-
Electronic Turnkey PCB Fabrication and Assembly PCB Circuit Board for Tablet PC
-
High Tg FR4 Quick Turn Prototype Circuit Boards Fabrication of ENIG / OSP / Gold Finger
-
Single Layer - 26 Layer Custom PCB boards Fabrication , 0.2mm - 4mm
Product Details
Brand Name | AGILECIRCUIT | Place of Origin | China | |
Model Number | aluminumpcbboard9090 |
Product Description
Certification:ISO9001,UL, RoHs, TS16949

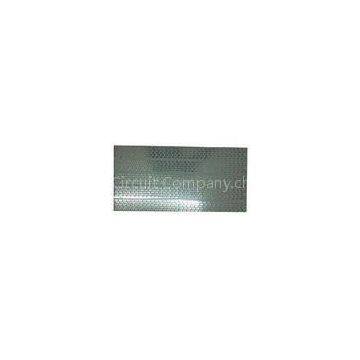

Single Layer LED PCB , Aluminum PCB Board with High Thermal Conductive Al 6061
Product Name: |
LED PCB |
Material: |
Al 6061 |
Layer Count: |
1 Layers |
Board Thickness: |
1.5mm |
Thermal Conductivity |
3.0 kw/m |
Surface Finish: |
Leadfree HASL |
Board Size: |
300mmx100mm |
Applications: |
LED light |
Description:
?
Aluminium PCB board (also aluminum PCB, al PCB, aluminium base PCB, aluminium based PCB, metal core printed circuits… ) is a unique metal base copper clad laminate, it is with good thermal conductivity, electrical insulation and mechanical processing properties. Aluminium PCB Board printed circuits is the best performance and the cheapest cooling solutions.
The metal core of the thermal PCB can be aluminum (Aluminium PCB Board printed circuits), copper (copper clad PCB) or mixture of special alloys. Aluminium PCB Board printed circuits is the most common used among them. Aluminium PCB Board printed circuits are composed by a unique 3-layer structure includes copper (conductor layer), dielectric Layer and metal substrate. Its metal base heat dissipation plate is a low-alloyed Al-Mg-Si-based high plasticity alloy plate, which has a good thermal conductivity, electrical insulation performance and mechanical processing properties. This enable Aluminium PCB Board printed circuits outpace conventional FR-4 in the capability of loading currency with the same spec.
Aluminium PCB Board Advantage:
?1. ?Dissipation of heat without using additional heatsinks.
?2. ?Mechanically rigid, increasing the physical strength of the assembly
?3. ?Reduces the effect of thermal stress on all components, increasing life and durability
?4. ?Improved thermal conduction leading to versatility in component and tracking layout enabling?PCB dimensions to be reduced.
5. ?Reduces component operating temperatures, improving reliability.
6.? Substrate aluminum can be drilled / machined and routed, aiding PCB mounting
?
Application:
Audio and Video equipment: Input/output amplifier, balanced amplifiers, audio amplifiers, preamplifier, power amplifier Communication electronic equipment: high-frequency amplifier, filter amplifier, transmitter circuit Office automation equipment: motor drive, and so on. Automotive: Electronic regulator, lighter, power controller Computer: CPU board, floppy disk drive, power supply devices Power Modules: converter, rectifier, bridge solid-state relay Lighting lamps: LED LightsSpecification:
Maximum Board Size |
23”x28” |
Board Thickness |
0.4-4.0mm |
Minimum Conductor Width |
0.10mm |
Minimum Conductor Space |
0.10mm |
Minimum Hole Size |
0.20mm |
PTH Wall Thickness |
>0.025mm |
PTH Hole Diameter Tolerance |
±0.05mm |
Non PTH Hole Diameter Tolerance |
±0.05mm |
Hole Position Deviation |
±0.076mm |
Soldemask Layer Min.Bridge width |
5mil |
Soldemask film Min.Thickness |
10mil |
Insulation Resistance |
1012Ω Normal |
Peel-off Strength |
1.4N/mm |
Soldemask Abrasion |
|
