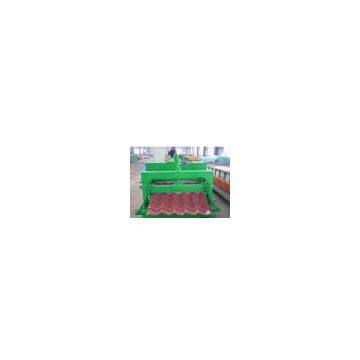

Glazed Tile Roll Forming Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LT		Place of Origin	China
Model Number	LT40-205-1025

Technical Specifications:

1). Coil Width: 1250mm.

2). Effective Width: 1025mm.

3). Suitable Coil Thickness: 0.4mm-0.6mm

4). Forming Speed: 2m-5m/min

5). Suitable Raw Materials: Pre-painted coil; Zinc coated plate

6). Forming Stations: 12

7). Power of main motor: 7.5kw, hydraulic motor: 3kw, 380V 50HZ 3phase

8). Electric control system: PLC

9). Dimensions: about 5700mm x 1750mm x 1460mm (20 feet container)

10). Function: forming roof panel

The equipment include:

1). Un-coiler: 1 set

2). Main Roll forming machine: 1 set

3). Hydraulic pressing&cutting: 1 set

4). Hydraulic station: 1 set

5). Electric controlling system: 1 set

6). Product rack (un-powered): 1 set

7). Instruction Book: 1 piece

We can design and make machine according to customers requirement.
