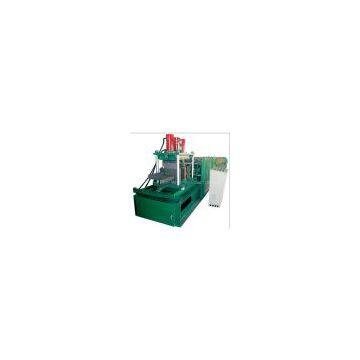

Z Purlin Roll Forming Machine
- 100 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | LT | Place of Origin | China | |
| Model Number | LT-Z |
Product Description
Technical specs:
1. Material Width: 500mm max.
2. Material Thickness: 2.0mm-3.0mm.
3. Forming speed:12m-15m/min.
4. Forming stations: 16
5. Material of the main shaft and rollers: forged Cr12, queching HRC58-62
6. Material of hydraulic cutter : Cr12MoV.
7. Power of main motor : 15kw.
8. Power of hydraulic station: 7.5kw.
9. Electric control system: PLC
10. Driving system: chain driven by motor reducer
11. Dimensions: about 10500mmx1500mmx1400mm.
12.Function: forming z purlin
The equipment include:
1. Mechanical Un-coiler, 1 set
2. Main Roll forming machine, 1 set
3. Hydraulic cutting, 1 set
4. Hydraulic station, 1 set
5. Electric controlling system, 1 set
6. Product rack (un-powered), 1 set
7. Instruction Book, 1 piece
Z100-Z300(Z100,Z120,Z140,Z150,Z160,Z180,Z200,Z250,Z280,Z300), can design and make the machine according to the requirement of the clients.
