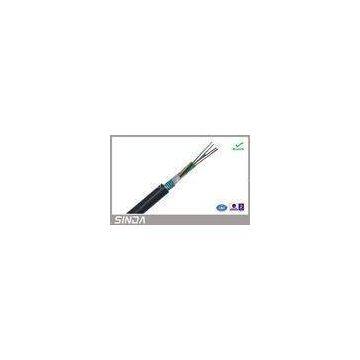

144 cores Multi mode PE Outdoor Direct Buried Fiber Optic Cable GYTS
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Aluminum Tape Layer Telecommunication Outdoor Fiber Optic Cable In Networking
-
FTTX Drop Outdoor Fiber Optic Cable In Data Processing Networking
-
Outdoor armored fiber optic cable with 24 core / 72 cores ultra violet radiation resistant
-
Armored and Double Sheathed Outdoor Cable GYTA53 50 / 125um IEC 60794-1
-
Self supporting aerial cable , 62.5 125 fiber optic Cable for network communication
-
12 Cores Singlemode Outdoor Fiber Optic Cable Figure 8 self supporting cable GYXTC8S
Product Details
| Brand Name | ODM Or SINDA OEM | Place of Origin | China | |
| Model Number | GYTS |
Product Description
Certification:ISO, ROHS
144 cores GYTS PE Outdoor Direct Buried Fiber Optic Cable GYTS
Quick Detail:
Fiber?brand?:?YOFC,?CORNING,FUJIKURA
Fiber?count?:?24-144 cores
Fiber?sort?:?Single?and?Multi?mode
Model: GYTS
Number?of?Conductors?:??≥?10
Certification?:?ISO,?ROHS,?UL,SGS,ATC
Sheath?:?PE
Package?:?Wood?Drum
Operating?Temperature??:??-40~+60gree
Fiber?sort?:?Single?and?Multi?mode
Product Name : Steel Tape Layer Losse Tube Outdoor Cable?
Description:
Steel wire strength.filler protect tube fiber.steel tape armord.
Good ultra violet radiation resistant property.?
Good moisture-resistance.
Applications:?
Adopted to Outdoor distribution.
Suitable for aerial .pipeline laying method.
Long distance and local area network communication
Specifications :
|
Cable Count |
Out sheath |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage? |
|||
|
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(℃) |
|
|
24 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
36 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
42 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
48 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
60 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
72 |
13.5 |
208.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
| 96 | 13.5 | 208.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 144 | 15.5 | 295.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | ? ? ? ? ?Graded-index fiber? |
| A1b |
