wood pelletizer

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YULONG		Place of Origin	China
Model Number	SKJ Series

Product Description

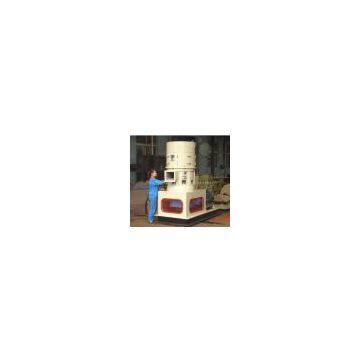

high quality wood pellet mill/wood pellet machine/ flat die pellet mill description:

The series SKJ flat die pellet mill with Taper-Shape Rollers( 3 rollers and 4 rollers series) is our patent product.This special design make the friction between the rollers and the flat die recude a lot, so that the lifetime of the machine is lengthened.

It is specially applied to wood sawdust,straw, crop stalk as well as rice husk and other hard pelleting crude fiber. They can also be used for making fertilizer pellets and animal feed pellets.

The technology we are using is developed from Germany.The output volume is high, energy consumption is low and the operation is convenient.

The diameter of pellts can be 2-15mm,and the bricks can be 6-30mm.As for pelleting small briquettes, the diameter can be 8-30mm.

The density of the pellets and the briquette is about 1.1-1.4.

The following specifications are for the straw or sawdust pellet capacity,when the machine is used for making fertilizer or feed,the capacity will be doubled or three times.

Name	Model	Power(kw)	Capacity	Weight(T)	Size(mm)	Roller
Fla-die Pellet Press	SKJ2-200	11	100-150kg/h	0.2	1150380800	2
Fla-die Pellet Press	SKJ2-250	15	150-250kg/h	0.48	1260600800	2
Fla-die Pellet Press	SKJ2-300	30	250-500kg/h	0.79	15506501000	2
Fla-die Pellet Press	SKJ3-350	37	400-600kg/h	1.6	18008501500	3
Fla-die Pellet Press	SKJ3-450	55	500-800kg/h	2.3	230011001600	3
Fla-die Pellet Press	SKJ3-550	90	1000-1500kg/h	3.2	260011002100	3
Fla-die Pellet Press	SKJ3-800	130-160	1500-2500kg/h	7.6	270012002400	3
Fla-die Pellet Press	SKJ4-1200	280-320	2500-4000kg/h	16.5	370019003000	4
