High Breaking Capacity Breaker, Mini Circuit Breaker , MCB, 3 phase MCB, 10KA, 1POLE, 2POLE, 3POLE

High Breaking Capacity Breaker, Mini Circuit Breaker , MCB, 3 phase MCB, 10KA, 1POLE, 2POLE, 3POLE, 4POLE
?
Factory Profile
?
Our factory WENZHOU HUAJIA ELECTRICAL EQUIPMENT CO.,LTD is founded in 1995, with more than 3500 square meters manufacturing space, 400 employees, it becomes one of the leading manufacturer of industrial electric product in China. And we have nearly 20 years experience in producing and exporting. Our products export to more than 30 countries and win a good reputation from our customers. In 2013, our export amount up to 200million US dollors.

Quick Detail:
?
?Place of Origin: China ? ? ?

?
?
Description:
?

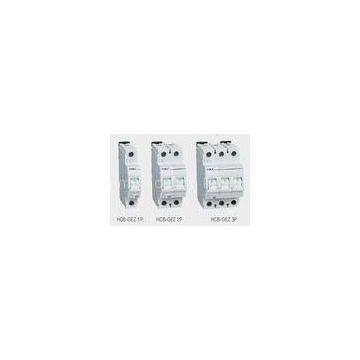

HCB-OEZ Mini Circuit Breaker Speci?cation and Feature :
■? Protection against both overload and short circuit
■? High breaking capacity
■? Contact position indication
■? Applicable to terminal and pin/fork type busbar connection
?
?
Technical Data
?
Pole No. 1, 2, 3, 4 Rated voltage AC 240/415V Rated current (A) 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 Tripping curve B, C, D Rated breaking capacity (Icn) 4500A, 6000A Rated frequency 50/60Hz Rated impulse withstand voltage 6.2kV Electro-mechanical endurance 6000 Contact position indication Connection terminal Screw terminal Pillar terminal with clamp Connection capacity Rigid conductor up to 25mm2 Fastening torque 2.0 Nm Installation On symmetrical DIN rail 35mm
?
?
Specifications and Feature :

■ Protection against both overload and short circuit
■ High breaking capacity
■ Contact position indication
■ Applicable to terminal and pin/fork type busbar connection

Technical Data :
