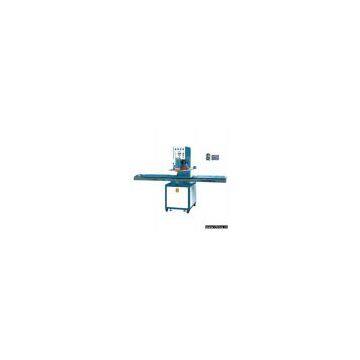

Sell Single-Head Push Plate High-Frequency Welding Machine

Place of Origin	China

Model No.:NK-GD0041
Product Origin:China
Brand Name:NEKON
Price Terms:FOB
Payment Terms:T/T
Certification:CE
Description:Features and functions: 1.Imported electron tube, with stable, reliable output 2.High-sensitivity spark arresting circuit, protecting molds from damage 3.Push plate structure, saving time and effort, easy to operate 4.Double cylinder worktable positioning device, featuring precise positioning 5.Assembled from full set of high-quality components, offering stable performance Functional description: 1.Unique design: This newly designed unit has a push plate/ turntable structure and a programmed control system, finishes preheating, welding and cooling operations precisely at steady pressures, and is also capable of Stoppage of oscillating current: The output power of this unit can be adjusted easily to product size and thickness by the tuner to control the level of welding, and guarantee the homogeneity of welding. 2.Safety protection: This unit includes over-voltage and over-current protectors that cut off high voltages automatically in case of abnormal operation to protect the oscillating tube and rectifier, while avoiding frequency drift resulting from improper operation. 3.Stable frequency: This unit is uses the industrial band 27.12/40.68 MHz in strict accordance with the provisions of the International Special Committee on Radio Interference (CISPR) and includes a frequency stabilizer and a frequency magnetic leakage arrester in its design for minimum outward interference deal for large-area PVC processing, such as large desk calendars, suction molding packaging, handbag impression, clothes embossing, etc. Specification list: Model: NK-GD0041 High-frequency output: 4KW/5KW/8KW/15KW Vibration frequency: 27.12mMHZ/27.12mMHZ/27.12mMHZ/13.56MHZ Supply voltage: AC380V Max input power: 6KVA/8KVA/12KVA/25KVA Oscillating: E3062/7T85RB/7T69RB/8T85RB Rectifying tube: HVP-14 Maximum pressure: 90kg/90kg/1.5T/1.5T Lower pole plate: 350*700/350*700/450*800/900*1400mm Travel distance: 60/60/70/200mm Mode of pressurization: Foot operated/Pneumatic
