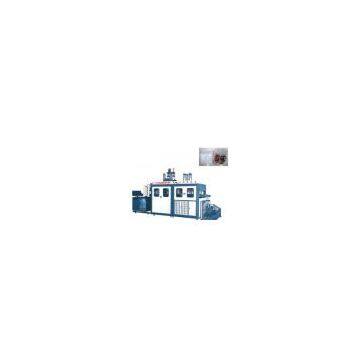

Sell Full-Automatic High-Speed Vacuum Forming Molding Machine

Place of Origin	China

Model No.:NK-XSJ002
Product Origin:China
Brand Name:NEKON
Price Terms:FOB
Payment Terms:T/T
Certification:CE
Description:Features and functions: This unit adopts a combined mechanical, electric and pneumatic design, in which a decelerating motor, inverter and counter are used to fulfill the pulling operation, while a meter counter used to control the travel distance. It is a full automatic, efficient plastic sheet forming device that completes feeding, heating, forming, cooling, de-molding and cutting operations at a time. It can suction-mold various films into bubble caps of different shapes. For example, toys, hardware, foods, electronic components and drugs can be coated and sealed on a paperboard in the form of a transparent film for tight packaging. This unit can produce cubic embossed patterns, e.g., plastic ceilings, wallboards, cake boxes, automotive and sanitary materials, etc. Parameter list: Model: NK-XSL002 Forming material: PVC, PP, HIPS, APET, PETG Forming length: 355-1, 118mm Forming width: 560-660mm Forming height: approx. 177mm Production rate (per hour): 220-600 times Power consumption of electrothermal furnace: 21.6-43.2KW Power consumption of motor: 3.2KW Vacuum pump (motor): 3KW/4HP Overall power consumption: 27.8-49.4KW Voltage: 380VAC 3-Phase/50Hz Body dimensions: 6430*1860*2560mm Weight: approx. 2500kg
