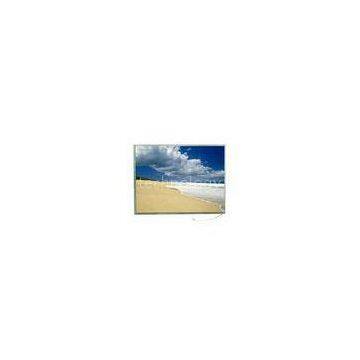

CMI Innolux 12.1" 1500:1 TFT LCD Panel G121S1-L02 600nit for Medical Equipments
- T/T L/C D/P D/A
- 7 days
You May Like
-
12.1\" LVDS CMI Innolux TFT LCD Panel G121X1-L03 Industrial Grade for Laptop,Notebook
-
CMI Innolux 12.1\" Advertising TFT LCD Panel G121X1-L04 for Laptop Screen
-
CMI Innolux 12.1 Inch LCD Panel G121I1-L01 1280*800 for Laptop , Medical Equipments
-
13.3\" CMI Innolux TFT LCD Panel G133IGE-L03 WXGA 500nit for Industrial Navigation
-
15\" CMI Innolux TFT LCD Panel G150X1-L03 450nit CCFL Backlight for Outdoor Application
-
CMI Innolux 15\" TFT LCD Panel G150X1-L03 With 20PIN LVDS for POS
Product Details
| Brand Name | CMI | Place of Origin | China | |
| Model Number | G121S1-L02 |
Product Description
Certification:CE,ROHS, FCC
CMI Innolux 12.1\"?1500:1?TFT LCD panel?G121S1-L02?600nit for Medical Equipments
Quick Detail
1. Part No:G121S1-L02
2.? Size:12.1nch
3. Resolution:1280?RGB?x 800
4. Luminance:400nit
5. Backlight: LED
6. Power?supply:3.3v(Typ.)
Specifications
| Module number | G121S1-L02 |
| Resolution | 800 x R.G.B. x 600 |
| Pixel Pitch | 0.3075(H) x 0.3075(V)(mm) |
| Active Area | 246.00(H) x 184.50(V)(mm) |
| View angle | R/L/U/D 89/89/89/89(Deg) wide view angle |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Surface Treatment | Hard coating (3H), Anti-glare (Haze 25%) |
| Electrical Interface | LVDS |
| Brightness | 600 (cd/m2) |
| Contrast ratio | 1500:1 |
| Outline dimension | 260.5(H)x 204(V) x 8.4(D)(mm)(Typ.) |
| Gross weight | 440g(Max.) |
| Backlight | LED |
| Response time | 25(ms) |
| Display mode | Super MVA, Normally black |
| Operate temperature | -30-85(°C) |
| Storage temperature | -30-85(°C) |
| Display Colors | 262k/16.2M |
| Power Supply Voltage | 3.3v |
| Module Power Consumption | 13.52W(Typ.) |
| Backlight lifetime | 50k hrs(Min.) |
| Package |
CMI original package; 16 pcs/carton; Carton size:465x362x314 mm; Gross weight:15.0 Kgs(Typ.) |
Main Models of CMI as follows:
| G070Y3-T01 | G121X1-L04 | AT043TN25 V.2 | AT065TN14 |
| G070Y2-T02 | G121I1-L01 | AT043TN24 V.7 | AT070TN94 |
| G070Y2-L01 | G150X1-L03 | EJ050NA-01G | AT080TN64 |
| G080Y1-T01 | G150XGE-L04 | AT056TN52 V.3 | EJ080NA-05B |
| G104X1-L03 | G185BGE-L01 V1.0 | AT056TN53 V.1 | ZJ090NA-03B |
| G104X1-L04 | G133IGE-L03 | AT070TN83 V.1 | EJ101IA-01F |
| G104S1-L01 | G154I1-LE1 | G057VGE-T01 | AT102TN03 V.9 |
| G104V1-T03 | AT102TN03 V8? | G057AGE-T01 | AT102TN03 V.8 |
| G121X1-L03 | LQ035NC111 | AT070TN92 | LSA40AT9001 |
| G121S1-L02 | ? | ? | ? |
