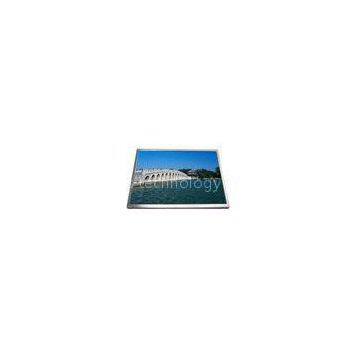

10.4" CMI TFT Chimei LCD Panel G104AGE-L02 For Warp Knitting Machine

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CMI		Place of Origin	China
Model Number	G104AGE-L02

Delivery Time:2-7days on receipt of payment
Certification:CE,ROHS, FCC

10.4\"?CMI Innolux TFT LCD panel??G104AGE-L02??for Warp Knitting Machine

Quick Detail

1. Part No:G104AGE-L02

2. Size:10.4inch.

3. Resolution:800x?R.G.B.?x?600

4.? Luminance:350?nit

5. Backlight: LED

6. Power?supply:3.3v(Typ.)

Specifications

Module?number	G104AGE-L02
Pixel?Number	800x?R.G.B.?x?600
Pixel?Pitch	0.264x?0.264(mm)
Active?Area	211.2?(H)?x?158.4?(V)(mm)
Bezel?Opening?Area	214.8*162.7
Driver?Element	?a-si?TFT?active?matrix
View?angle	R/L/U/D?80/80/70/70??(Deg)
Pixel?Arrangement	R.G.B.?Vertical?Stripe
Surface?Treatment	Hard?coating(3H),AG
Transmisive?Mode	?Normally?white
Electrical?Interface	LVDS
Brightness	350?(cd/m2)
Contrast?ratio	700:1
Outline?dimension	238.6(H)x?175.8(V)?x?7.5(D)(mm)
Gross?weight	280g(Typ.)
Backlight	LED
Response?time	16?(ms)
Operate?temperature	-30-85?(°C)
Storage?temperature	-30-85??(°C)
Display?Colors	262k/16.2M?
Power?Supply?Voltage	3.3v
Module?Power?Consumption	5.1W(Typ.)
Backlight?lifetime	30k?hrs(Min.)
Package	CMI?original?package; 18?pcs/carton; Carton?size:?465x362x314?mm; Gross?weight:?8.3?Kgs.

Main Models of CMI as follows:

FAQ

1. Q: What Brand do you have?

? A: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG

2 .Q: What is your delivery method?

??? A: DHL , UPS , FedEx ,TNT

3. Q: what’s your products condition?

? ??A: Brand New,A grade,Original Package.
