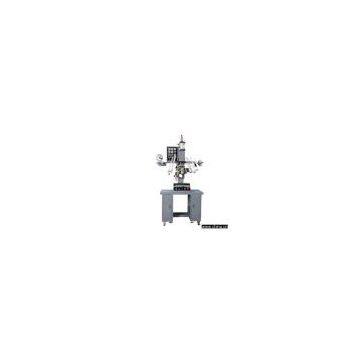

Sell Heat Transfer Printing Machine

Place of Origin	China

Model No.:VST2015
Product Origin:China
Brand Name:VST
Price Terms:
Payment Terms:T/T
Certification:
Description:1. The relay type is suitable for plastics and crafts with circular surfaces if it's equipped with special parts. The transfer printing is applied for smooth plastic with some recesses and relief 2. Rubber roller contacts with substrates in linear form to avoid pin holes on stamping surface 3. High precision photo sensor is used to monitor and control the feeding of foil with dots and a timer is used for the foil without dots 4. Stamping head height is adjustable to meet the requirements for different substrates with various heights 5. Worktable can be adjusted forward/backward and left/right, and turned slightly 6. Profiling mechanism ensures proper stamping on irregular substrates 7. Capable of adjusting the stamping pressure, temperature and speed 8. Use pneumatic-hydraulic conversion cylinder to ensure smooth stamping 9. Auto foil feeding and collecting and the feeding length adjustable Parameters: 1. Pressure: 0.5MPa 2. Max. transferring diameter: 300mm 3. Rubber roller size: 200 x 300mm 4. Max. transferring speed: 700 - 1,000pcs/h 5. Wattage: 220V, 50Hz, 1,700W 6. Machine weight: 253kg Packing: Dimensions: 1. Head of machinery: 1,200 x 810 x 1,300mm 2. Operating table: 1,020 x 665 x 850mm
