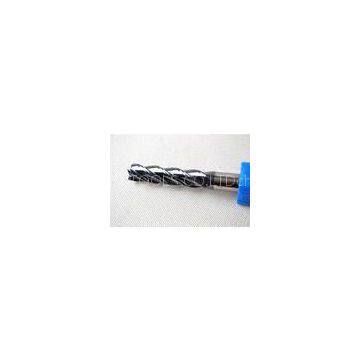

Four flute Flat endmill High Precision Milling Cutter Square End Mill
- T/T L/C D/P D/A
- 7 days
You May Like
-
Two flute Roughing End Mills Long Neck Coated Standard Cutting Tools
-
Super-Fine Grain Micro End Mill 4 Flute Milling Cutter , CNC Square End Mill
-
Custom Solid carbide Micro End Mills Long Shank Coated Cutting Tools
-
Carbide Mirco Grain Chamfer Milling Cutters For Stainless steel , 30 Degree Helix angle
-
TiAlN coated HRC50 Chamfer Milling Cutters Solid Carbide Spotting Drills
-
Short Roughing Solid Carbide Drill Bit for Metal , Mirco Grain Size
Product Details
| Brand Name | INMIND | Place of Origin | China | |
| Model Number | Long Flute type 3mm to 20mm |
Product Description
Certification:SGS Factory Certificater
Four flute Flat endmill High Precision Milling Cutter Square End Mill
Quick Detail:
0.3-0.4um Super-Fine grain size solid carbide rod,Germany
Mutli-TIALN Coating (Black)--Arco,TiSiAlN(Copper),Platit
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC60
1 piece packing.
Long Shank Type
Description:
Super-Fine Grain Szie 0.3-0.4um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC60,Middle-High speed.
Carbide Rod:Wc:90%,TRS:4000N/mm2, Grain Size:0.3-0.4um,HRA:93.5
Applications:
Fit for milling quenching and tempered steel.high wear resistance material,stainless steel.nickel alloy andY Titanium alloy,Cast iron,enhanced composited material like Keviar and graphite,reinforced Plastics,For PCB routers,for high speed cutting,for dry cutting.
Specifications:
|
Order No |
Cutting |
Flute Length |
Shank |
A.O.L |
|
d |
l |
D |
L |
|
|
3×15×3D×75L×4F |
3 |
15 |
3 |
75 |
|
4×20×4D×75L×4F |
4 |
20 |
4 |
75 |
|
5×25×5D×75L×4F |
5 |
25 |
5 |
75 |
|
5×25×6D×75L×4F |
5 |
25 |
6 |
75 |
|
6×25×6D×75L×4F |
6 |
25 |
6 |
75 |
|
8×30×8D×75L×4F |
8 |
30 |
8 |
75 |
|
3×15×3D×100L×4F |
3 |
15 |
3 |
100 |
|
4×20×4D×100L×4F |
4 |
20 |
4 |
100 |
|
5×25×5D×100L×4F |
5 |
25 |
5 |
100 |
|
6×30×6D×100L×4F |
6 |
30 |
6 |
100 |
|
8×35×8D×100L×4F |
8 |
35 |
8 |
100 |
|
10×45×10D×100L×4F |
10 |
45 |
10 |
100 |
|
12×50×12D×100L×4F |
12 |
50 |
12 |
100 |
|
6×35×6D×150L×4F |
6 |
35 |
6 |
150 |
|
8×40×8D×150L×4F |
