28W Bridgelux Lens , LED Street Light Module For Street Lamp
- T/T L/C D/P D/A
- 7 days
You May Like
-
Reflector Cree Lens , Led Street Light Module For Street Lamp
-
28w Cree Xpe Lens , LED Street Light Module With Cree Xpe Leds
-
30W Optical Glass Lens , Led Street Light Module For LED Street Lighting
-
12W CREE PMMA Lens , Led Street Light Lens For Led Lamp
-
150W Glass Lens , LED Street Light Module With Lens and Multi Leds
-
PMMA Cree Lens , Led Street Light Module For Cree Light
Product Details
| Brand Name | Sunshineopto | Place of Origin | China | |
| Model Number | SUN-LD96X153 |
Product Description
Certification:SGS,ROHS

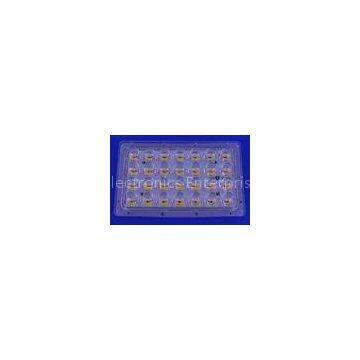

28W Bridgelux Lens , LED Street Light Module For Street Lamp
Quick Detail:
1. 28W Lens Material: optical PC
2. Lens Beam Angle :90x120degree
3. Lens size:152.8x95.9x10.9mm
4. PCB Module size :132x75mm
5. LED Driver size :180x39x30mm
6. PCB Circuit with 28x1W LED : 7 series 4 parallel ,14 series 2 parallel or 28 in series
7. Model No: SUN-LD96X153
Description:
This SKD 28W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 56W,112W,168W and so on . It\'s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures. Operating temperature range: from 35 Celsius degree to 70 Celsius degree. The LED retrofit kits contain no any mercury or lead. Directional light means no light pollution, dark sky compliance. Optic lenses are available for projects that need smaller beam angles, like 90x120°, 140x70°,120x60°, 90x126°etc.Specifications:
|
Product Name |
28W Bridgelux Lens , LED Street Light Module For Street Lamp |
|
Model No |
SUN-LD96X153FULL |
|
Main parts |
28W Lens+ Silicone gasket + AL PCB mounting leds +Waterproof led constant driver |
|
Lens Material |
PC Optical |
|
MOQ |
30pcs |
|
Lens size |
152.8x95.9x10.9mm |
|
PCB Size |
132x75mm |
|
Sample |
3 days |
|
Delivery |
5-6days |
|
Certificate |
ROHS, SGS |
|
Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL |
4-5?working days |
|
UPS |
3-5 working?days |
|
EMS |
7-15?working days |
|
Fed?Ex/TNT |
3-5?working days |
|
HK?Post?Air?Mail?Register |
10-18 working?days |
|
Delivery?time |
5-6?working days |
Competitive Advantage:
1). Using high quality USA Bridgelux chips
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). LM80 testing reports available
5). All models are simply installed by E26/E39/E40 mounting brackets.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
