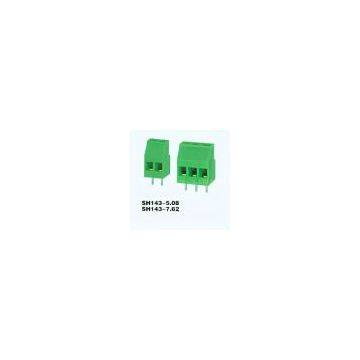

SH143-5.08,SH143-7.62,Pcb Terminal Blocks

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	SH143-5.08,SH143-7.62

Product Description

Pitch:5.08mm,7.62mm

MATERIAL

Screws: M3.0 Steel Ni-plated Contact: Brass Ni-plated
Pin Header: Brass Tin-plated Housing: PA66 UL94V-0

ELECTRICAL

Rated Voltage: 300V

Rated Current: 9A
Contact Resistance: 20mΩ

Insulation Resistance: 5000M/1000V
Withstanding Voltage: AC1500V/Min

Wire Range: 24-14AWG 2.5mm²

MECHANICAL

Temp. Range: -40℃~+105℃ Max Soldering: +250℃/Sec
Torque: 5.0Kgf.cm Strip Length:4.5-5mm

NOTICE:
1, When ordering please note the price refers to each pole(pin) of the Terminal Block.
2, You should tell us which is you want:2, 3, 4, 5, or 6 pole(pin) of Terminal Blocks.
And some Terminal Blocks only have 2 pole and 3 pole.
You can write down it when you order online on Special Instructions or Comments About Your Order, or email to us: sales(at).
For example, if you order 10 x SH110-2.54,you can choose 2, 3, 4, 5, or 6 pole(pin). if you choose 2 pole,we will send you 5pcs SH110-2.54-2P .
if you order some samples and didn't tell us about the poles, we will send you 2 pole of the Terminal Blocks for sample .
3, If you need a lot of Terminal Blocks , and want to reduce costs , or you have any other requirements, please contact us sales(at). we will do our best to help you.
