Home > Products > SMD LED PCB Board > 56W LED PCB Board mounting Bridgelux chips leds DIY Customerize

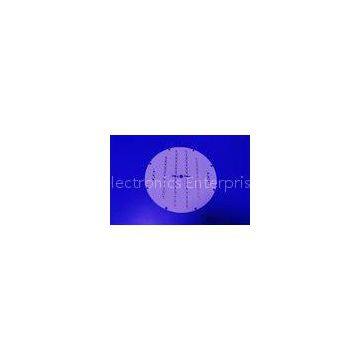

56W LED PCB Board mounting Bridgelux chips leds DIY Customerize

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunshineopto		Place of Origin	China
Model Number	L56W

Product Description

Delivery Time:7-10 work days
Certification:SGS,ROHS,LM-80

56W LED PCB Board mounting Bridgelux chips leds DIY Customerize

Quick Detail:

1. Model : L56W

2. Diameter of PCB : 203.2mm

3. Thickness : 3.0mm

4. LED chip : 45mil Bridgelux chip ,120-130lm/watt

5. CCT : 2900-3200,4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-6500K,7000-9000k.

6. Forward voltage for single LED : 3.0-3.6v.

7. Forward current for single LED : 350ma.

8. View angle for LED : 120degree

9. View angle for LENS : 120*45 degree.

10. Dimension for LENS : 29.9*10.8*9.48mm .

Description:

Best raw materials used in our LED production : 1)Chip: Bridge lux chip or Epistar 45MIL chip; 2) Silicon glue: USA Dow corning (good glue has less lighting decreasing); 3) Powder: USA Intermatix (good powder has better performance in lumens);4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;5) Led base:red/ black cooper base (for better thermal conductive/ disspation) . Super high Flux output and ?high Luminance? ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant? We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow .etc. Accept the small order and 2 years warranty .

Applications:

General Illumination????? ??????

- Outdoor & Indoor architectural lighting??? ??????

- Decorative lighting????? ??????

- Flood lighting,cast light lamps???

- Street lamp,Tunnel lamp

Specifications:

Product Name	56W LED PCB Board mounting Bridgelux chips leds DIY Customerize
Model No	L56W
Finishing	Reflow soldering
Material	Bridge lux chip or Epistar chip 45mil
MOQ	30pcs
Size	Diameter of 203.2mm,thickness of 3.0mm .
Package	0.38kg/pc
Sample	3-5 work days
Delivery	7-10 work days
Certificate	SGS,ROHS
Quality guarantee	2 years warranty
?Main market	Europe, America,Asia

Shipping and delivery time:

DHL	4-5?work days
UPS	4-5?work days
EMS	7-15 work days
Fed?Ex/TNT	3-5?work days
HK?Post?Air?Mail?Register	10-18 work?ing days
Delivery?time	7-10?working days

Competitive Advantage:

1.One Stop Service for LED Solutions , 6 years specializing in High Power LED industry;

2.Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;

3.Strict process and quality control;

4.Good raw materials used in production.

5. Strong design with OEM service and production capability

Led Factory Line:

Company Team:
