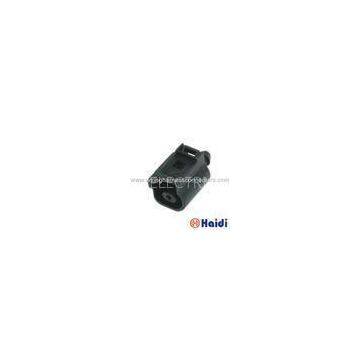

1J0 973 081 Automotive Electrical Connectors 1 Way Oil Sensor Plug For Vw / Audi

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HAIDIE		Place of Origin	China
Model Number	1J0 973 081

Product Description

Delivery Time:3-10 work days
Certification:TUV/T/S16949/ISO14001/system/RoHS

1 way oil sensor plug for vw audi /CC/Q7/Touareg/ Magotan part of 1J0 973 081

Wiring harness is wrapped with woven wires or plastic tapes, which is for security, process and maintenance, woven wires are out of use now, and it is adhesive tape being used instead. The connection between wiring harness and that between wiring harness and electrical parts adopt alliance plug-ins or lugs. Alliance plug-in is made from plastic, with plug and socket. Wiring harness are connected with alliance plug-ins and the connection between wiring harness and electrical parts adopt alliance plug-ins or lugs.

Product name	Automotive Connector
Material	Housing:PBT+G,PA66+GF; Terminal:Copper Alloy/Brass/Phosphor Bronze.
Operating Temperature range	-40℃~120℃
Function	Replacement for Original Brand Cars
MOQ	Small order can be accepted
Delivery Time	Enough stock and strong production capacity ensure delivery time

Material

The requirements of automobile wiring harness are also strict on material.

Material concerning electrical properties, material distribution and temperature resistance is with higher requirements compared with common wiring harness, especially those concerning security: for example, wiring harness for important components like direction control system and brake, the requirements will be even more strict.

Product Description

Before the permutation of wiring harness, its drawing ought to be laid out first, the wiring harness drawing is different from circuit principle diagram.

The later reflects relations between various electrical parts, not to reflect how the parts are connected to each other, and is not influenced by size, shape of electrical components and their distance from each other.

While wiring harness drawing must take the above factors into consideration, and reflect how electrical parts are connected to each other

After cable harness board is made by technicians in wiring harness factory according to wiring harness drawing, workers start transversal and winding displacement according to provisions of cable board.

Main wiring harness of automobile are normally divided into motor (ignition, EFI, power generation, starting), meter, lighting, air conditioning, auxiliary electrical appliances, etc., there are main and branch wiring harness. One automobile main wiring harness is with several branch wiring harness, just like tree stem and branch.

Automobile main wiring harness usually takes dashboard as the core part, extending from the front to the back.
