10 position rotary type DIP switch

Welcome to Cixi Wangtong Electronic Co.,Ltd. which is DIP Switch Manufacturer and  Cabling System
Manufacturer.

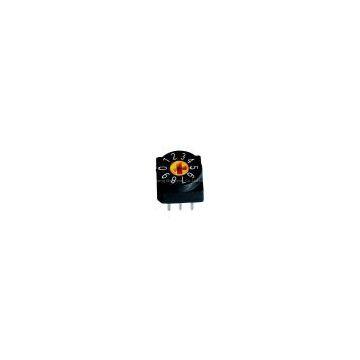

Rotary DIP Switch

ELECTRICAL SPECIFICATIONS
Operating voltage: 24VDC Max.
Contact load,static: 400mA Max.
Contact load,dynamic: 150mA Max.
Initial contact resistance: 80mΩ Max.
Insulation resistance: 100mΩ Min.

SOLDER RECOMMENDATIONS
Hand Soldering:340℃ Max. for 2 seconds Max.
Wave Soldering:260℃. Max. for 10 seconds Max.

PACKING
Switches are packed in standard IC Tube Package,47 pcs per tube,and the accessories are bags.

MECHANICAL DATA
Expected life: 10,000 steps
Position per rotation: 10, 16
Operating temperature: -20℃ to 70℃

MATERIALS
BASE: Engineering plastics,Black.
COVER: Engineering plastics,Black.
Actuator: Engineering plastics
Contacts: Alloy copper,Gold over nickel plated
TERMINAL: Alloy copper,Tin plated
