Product Details

Brand Name	KRE		Place of Origin	China
Model Number	KE6001

Product Description

Delivery Time:1-2 month

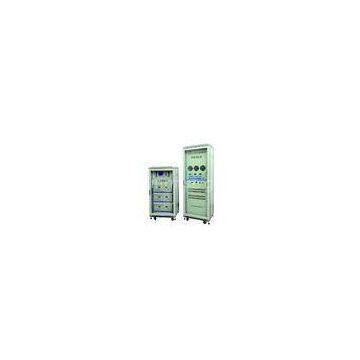

Automatic Six Wire?3 Phase Transformer Test Equipment To Monitor Current Voltage

The product could do the test of three phase combined transformers, at the same time it can provide three phase test voltage and current for the three phase combined transformer. Frequency and phase of the voltage and current could be adjusted

Highlight: Auto test of the error, auto saving of the error, and auto rounding of the error Adopt 320×240 matrix LCD, large active area, with long life back lightning. Auto sampling according to the requirements of the JJG314-1993 and JJG314-1994 Auto detect the polarity and transformation ratio mistake, and auto change of the range Automatic and manual operation It makes the paperless operation possible from testing to the report printing and the certification of inspection with PC software. The system could monitor the current and the voltage, and it also has the function of positive and negative going motion interlocking, rotation limitation and protection. Under the rating power, the distortion factor of the voltage and the current: ≤1%, the output is stable and the point sort is quick and convenient. The output adjustment accuracy ＜0.5‰, which solves the problem of the point 1.0% that is difficult to adjust in CT measuring. ? Main specifications:

Voltage output
Output range	Simultaneous output the 20%～120% of the primary voltage of the voltage transformer (VT), it is continuous and adjustable
Output power of voltage	Single phase: 0~120V? power output:1×1kVA Three phase three wire(V type):0~240V, power output:2×1kVA Three phase four wire(Y-type):0~240V, power output:3×1kVA
Current output
Output range	Simultaneous output the 1%～120% of the primary current of the current transformer (CT), it is continuous and adjustable
Output power of current	Three phase six wire:0~240V, power output:3×2kVA
Frequency output
Output range	45~65Hz,(fundamental frequency)continuous and adjustable
Operation conditions
Power supply	220V±10%? 50/60Hz±2Hz
Temperature	-10°C -- +40°C
Humidity	35% -- 85%RH
