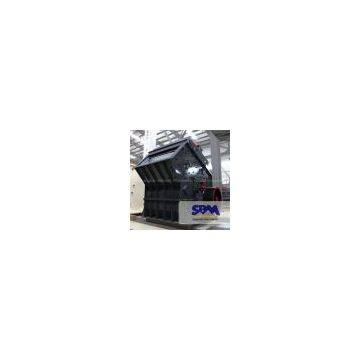

PF Impact Crusher
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | SBM | Place of Origin | China | |
| Model Number | variety |
Product Description
By absorbing the advanced technology from the world, we researched and designed PF series impact crusher. It can be used to deal with materials whose size below 500mm and whose compression strength less than 360Mpa. Thus, it is widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on.
Features:
High efficient Long service life
Strong structure Steady performance
Good final products Discharging opening is adjustable
No-board connection Easy to disassembly and maintain
Application:
Impact crusher are mostly used as secondary crusher and it well fits for crushing numerous medium and soft mineral &rock materials, such as limestone, feldspar, calcite, talc, barite, clay, tombar thite, kaolin, gypsum, and graphite, etc.
Technical Data:
Model | Rotor Φ×L (mm) | Feed Opening (mm) | Max Feeding (mm) | Capacity (t/h) | Power (kw) | Motor Model | Machine Size (mm) |
PF1010 | Φ1000×1050 | 400×1080 | 350 | 50-80 | 4-75 | Y280S-4/75 | 2455×2086×2800 |
PF1210 | Φ1250×1050 | 400×1080 | 350 | 60-120 | 6-110 | Y315L1-6/110 | 2590×2050×2810 |
PF1214 | Φ1250×1400 | 400×1430 | 350 | 80-160 | 6-132 | Y315L2-6/132 | 2590×2400×2810 |
PF1315 | Φ1300×1500 | 860×1520 | 350 | 120-260 | 6-200 | Y355M3-6/200 | 2930×2760×3050 |
