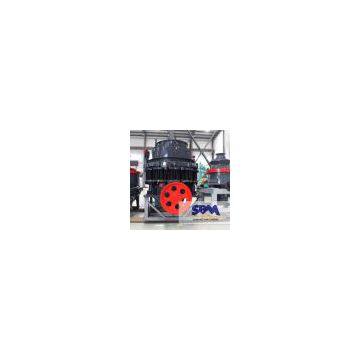

CS Cone Crusher plant flow chart
- 100 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | SBM | Place of Origin | China | |
| Model Number | CSB75/CSD75/CSB160/CSD160/CSB240/CSD240/CSB400/CSD400 |
Product Description
Application:
CS series cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher.
Technical Data:
|
Model |
Movable Cone Diametermm (inch) |
Chamber Style |
Opening Side |
Closed Side |
Discharging Opening (mm) |
REV (r/min) |
Power (kw) |
Motor Model |
Capacity (t/h) |
Machine Size (mm) |
|
Max.Feeding (mm) |
||||||||||
|
CSB75 |
900 (3′) |
medium |
83 |
102 |
9-22 |
580 |
6-75 |
Y315S-6/75 |
45-91 |
2821×1880 ×2164 |
|
coarse |
159 |
175 |
13-38 |
59-163 |
||||||
|
CSD75 |
914 (3′) |
fine |
13 |
41 |
3-13 |
580 |
6-75 |
Y315S-6/75 |
27-90 |
2821×1880 ×2410 |
|
medium |
33 |
60 |
3-16 |
27-100 |
||||||
|
coarse |
51 |
76 |
6-19 |
65-140 |
||||||
|
CSB160 |
1295 (4 1/4′) |
fine |
109 |
137 |
13-31 |
485 |
6-185 |
Y355M2-6/185 |
109-181 |
2800×2342 ×2668 |
|
medium |
188 |
210 |
16-31 |
132-253 |
||||||
|
coarse |
216 |
241 |
19-51 |
172-349 |
||||||
|
CSD160 |
1295 (4 1/4′) |
fine |
29 |
64 |
3-16 |
485 |
6-160 |
Y355M1-6/160 |
36-163 |
2800×2342 ×2668 |
|
medium |
54 |
89 |
6-16 |
82-163 |
||||||
|
coarse |
70 |
105 |
10-25 |
109-227 |
||||||
|
CSB240 |
1650 (5 1/2′) |
fine |
188 |
209 |
16-38 |
485 |
6-240 |
|
181-327 |
3911×2870 ×3771 |
|
medium |
213 |
241 |
22-51 |
|
258-417 |
|||||
|
coarse |
241 |
268 |
25-64 |
|
299-635 |
|||||
|
CSD240 |
1650 (5 1/2′) |
fine |
35 |
70 |
5-13 |
485 |
6-240 |
|
90-209 |
3917×2870 ×3771 |
|
medium |
54 |
89 |
6-19 |
|
136-281 |
|||||
|
coarse |
98 |
133 |
10-25 |
|
190-336 |
|||||
|
CSB400 |
2134 (7′) |
fine |
253 |
278 |
19-38 |
435 |
6-400 |
|
381-726 |
5200×4300 ×4700 |
|
medium |
303 |
334 |
25-51 |
|
608-998 |
|||||
|
coarse |
334 |
369 |
31-64 |
|
870-1400 |
|||||
|
CSD400 |
2134 (7′) |
fine |
51 |
105 |
5-16 |
435 |
6-400 |
|
190-408 |
5200×4300 ×4700 |
|
medium |
95 |
133 |
10-19 |
|
354-508 |
|||||
|
coarse |
127 |
178 |
13-25 |
|
454-599 |
